Showing 1–16 of 69 results
0.5mΩ High-Power Current Sensing Chip Shunt Resistor The 0.5mΩ High-Power Current Sensing Chip Shunt Resistor is designed for precision current measurement in demanding power electronics. Its ultra-low resistance and alloy construction ensure stable sensing performance with minimal thermal drift. Product Features of Chip Shunt: ✅ EB welded structure for superior mechanical and thermal stability ✅…

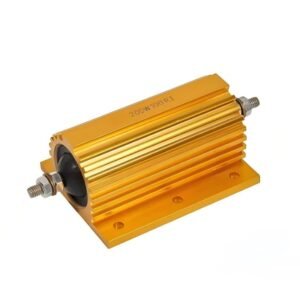

Overview This wire wound resistor is ideal for motor braking, power load testing, and industrial energy dissipation. With its robust aluminum housing and precise resistance tolerance, the wire wound resistor ensures stable and safe operation in AC/DC systems. Key Features of Wire wound resistor Icon Feature Description 🔥 High Heat Dissipation Aluminum alloy casing with…
Precision current sensing up to 100A
Low resistance, high efficiency
Stable metal alloy construction
Low TCR (≤50ppm/°C)
Compact open-air design
Ideal for BMS, inverters, DC systems

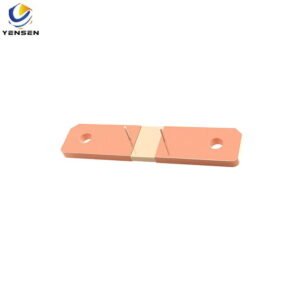

100A High Current Shunt Resistor for Accurate DC Measurement This 100A shunt resistor is designed for precise current measurement in high-current DC systems such as power supplies, battery management systems (BMS), and industrial equipment. It provides stable resistance and reliable performance under continuous load conditions.The high current shunt resistor is a precision component designed to…

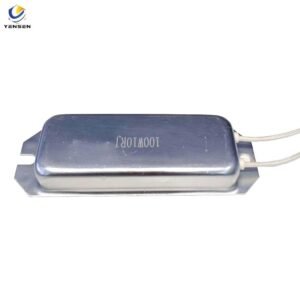

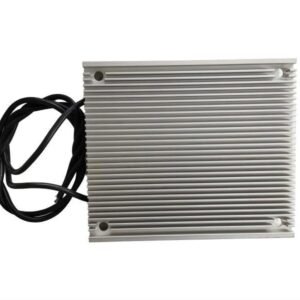

Overview This 100W aluminum pre-charge resistor is designed to protect power systems and servo drives by controlling inrush current during startup. Its robust aluminum housing provides efficient heat dissipation, while the compact structure ensures easy integration into tight spaces. Ideal for industrial automation, inverters, elevators, and audio systems requiring high reliability and surge protection. Operating…

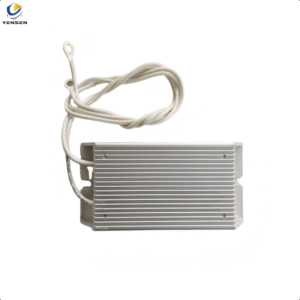

Overview The 100W VFD Braking Resistor is a dynamic braking component designed to absorb regenerative energy generated during motor deceleration in variable frequency drive (VFD) and inverter systems. By converting excess electrical energy into heat, it helps prevent DC bus overvoltage and ensures stable braking performance. Featuring a durable aluminum housing with excellent heat dissipation…
Length: 3mm~20mm
Width: 1mm-10mm
Thickness: 0.3mm~2mm
Over Current: 10A~100A
Size: 1206 (3.2mm × 1.6mm)
Resistance Range: Typically 0.5mΩ to 100mΩ
Tolerance: ±1% to ±5%
Power Rating: 0.5W to 1W (depending on the specific model)
Temperature Coefficient of Resistance (TCR): Low TCR, typically around ±75 ppm/°C
Operating Temperature Range: -55°C to +170°C
Material: Metal alloy (such as Ni-Cr or Cu-Mn)
Packaging: Tape and reel, suitable for automated SMD assembly

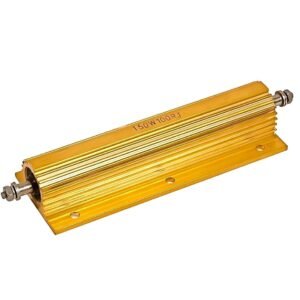

Overview This 150W aluminum load resistor is built for high-power applications such as LED lighting, power conversion, and inverter systems. Its rugged housing ensures excellent heat dissipation and long-term reliability under continuous or pulsed loads. Ideal for engineers needing stable performance in current limiting, braking, or dummy load setups across industrial or commercial environments. RoHS…
-Rated Power 1KW -5KW
Resistance ：0.01Ω~100KΩ
Tolerance：0.1%,±1%,±2%,±5%,±10%
T.C.R.：±100PPM~±400PPM
Mounting：Chassis
Technology：Wirewound Or Metal film

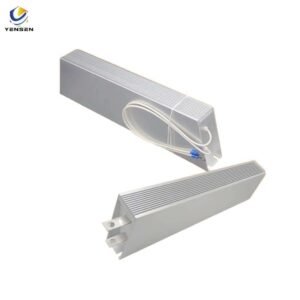

low inductance Air cooled resistor is designed for high power electronic systems requiring stable performance under high frequency switching environments. With power ratings up to 2.2kW, this resistor module is optimized for applications such as AI data center power systems, IGBT power electronics, inverter systems and common-mode filter structures. The forced air cooling design ensures…
Overview This 200W aluminum housed braking resistor is designed for dynamic braking applications in motor drives and inverter systems. 200W Aluminum Braking Resistor is a critical component designed to absorb and dissipate energy in braking circuits. Our Aluminum Case Braking Resistor ensures efficient heat dissipation, high durability, and stable performance, making it ideal for various…
Resistance Range: Customizable
Power Rating: 10W to 500W and above
Housing Material: Aluminum alloy
Connection Type: Leads or bolt terminals
Size and parameters adjustable upon request
Overview Servo motor load resistors are designed to absorb regenerative energy generated during servo motor deceleration and protect servo drive systems from overvoltage conditions. Also known as servo motor braking resistors or servo drive braking resistors, these components are commonly used in industrial motion control systems, CNC machines, robotics, and automation equipment where reliable energy…
Overview Designed for high-accuracy current measurement, this 300A precision electron beam welded shunt resistor with 3 terminals offers exceptional stability and low resistance. Ideal for EV battery packs, BMS, and industrial energy storage systems, it ensures reliable performance under heavy load and harsh conditions. Customizable resistance values and mounting options available Electrical parameter Model L…
Overview This 300W LED load resistor is designed to simulate electrical load for LED lighting systems, power supplies, and automotive applications.It ensures stable performance, efficient heat dissipation, and reliable testing under high power conditions.Our industrial LED load resistor is designed to provide reliable and durable performance in heavy-duty applications. With a power rating of 300…
