Showing all 9 results

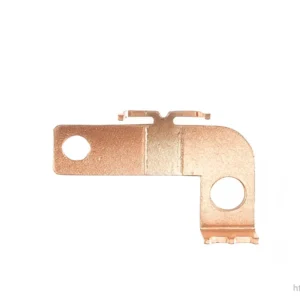

Smart Meter Shunt with E-Beam Welding is a precision Manganin current sensor designed for accurate energy measurement in smart meters and industrial applications. With high stability, low temperature coefficient, and robust E-Beam welding, it ensures reliable performance over long-term operation. Parameter Value Material Manganin Alloy Welding Type E-Beam Welded Resistance Range 50μΩ – 500mΩ (customizable)…
Technical Specs:
Accuracy: 0.5 level (2–4000A), 1.0 level (5000–10000A)
Temp range: -40°C to +60°C; RH ≤95% (at 35°C)
Overload: 120% rated current for 2 hrs
Voltage drop: 50mV, 60mV, 70mV, 75mV, 100mV
Heat: ≤80°C (<50A); ≤120°C (≥50A)
Rated Current: 200A
Output Voltage Drop: 75mV
Accuracy Class: ±0.5% (or customizable)
Material: Manganin or copper-manganese alloy
Operating Temperature: -40°C to +60°C (or as specified)
Mounting Type: Bolt-on / Screw terminal
Optional: Customized size, terminal type, or calibration values

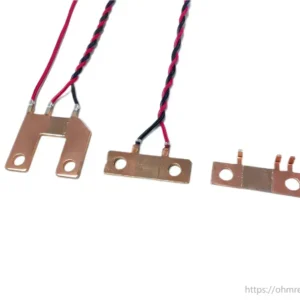

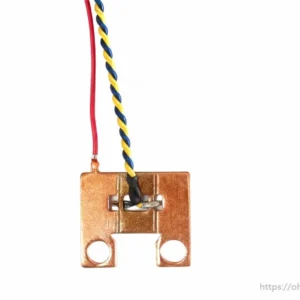

A DC energy meter shunt resistor with lead wires is a precision component designed to convert high DC current into a small, measurable voltage signal. It enables accurate power calculation, stable energy monitoring, and long-term reliability in compact metering circuits. For more technical references on shunt resistors, see Mouser Electronics – Shunt Resistors, or check…

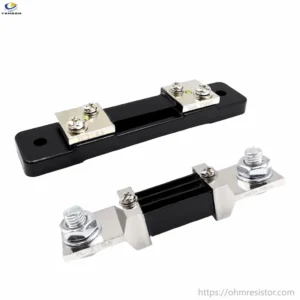

Overiew This DC ammeter shunt resistor is designed for precise current measurement in DC power systems, battery monitoring, and industrial electrical equipment. It provides stable performance and high accuracy under continuous load conditions.A DC ammeter shunt converts electric current into a measurable 75 mV voltage drop for precise current monitoring.This fixed-type 50A DC ammeter shunt…
Rated Current: 200A
Output Voltage Drop: 75mV
Accuracy Class: ±0.5% (or customizable)
Material: Manganin or copper-manganese alloy
Operating Temperature: -40°C to +60°C (or as specified)
Mounting Type: Bolt-on / Screw terminal
Optional: Customized size, terminal type, or calibration values

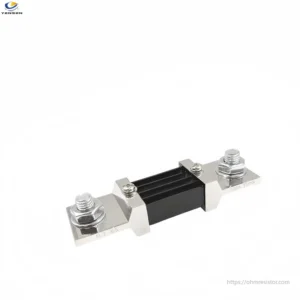

Ultimate 100A Bolt-on DC Shunt Resistor for Accurate Current Sensing A bolt-on DC shunt resistor is a precision current sensing component designed to convert high DC current into a measurable 75mV voltage drop for accurate monitoring in industrial and energy metering systems. Our industrial meter shunt resistors provide precise and reliable DC current measurement solutions…
