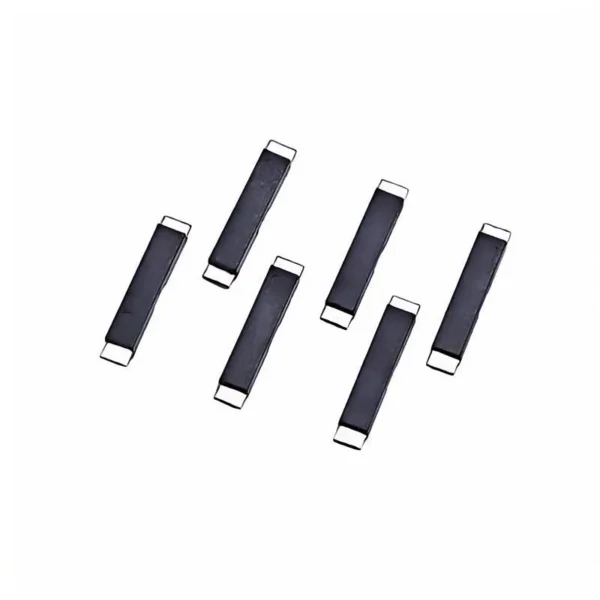

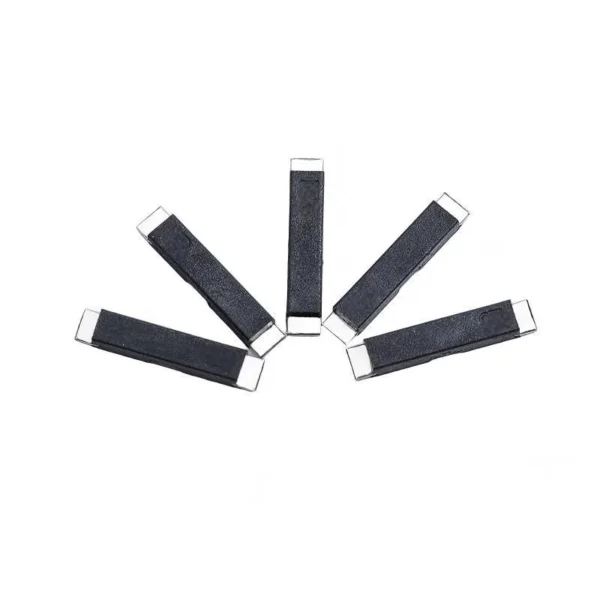

Zero Ohm Resistor (PCB Jumper) – Epoxy-Coated SMD/SMT Type
Length: 3.2mm~13.2mm
Width: 1.3mm-1.5mm
Thickness: 0.6mm~1mm
Over Current: 5A~30A
Tolerance: 1%
Description
Zero Ohm PCB Jumper – Epoxy-Coated SMD/SMT Type is engineered for high-reliability PCB designs, serving as a robust alternative to standard jumpers and busbars. The epoxy encapsulation ensures excellent insulation, mechanical durability, and protection against harsh environmental conditions, making it ideal for industrial, automotive, and high-frequency applications.
Key Features
Epoxy-coated encapsulation: Provides superior insulation and protection against humidity, dust, and mechanical stress.
Low impedance, non-inductive design: Optimized for high-frequency and precision circuits.

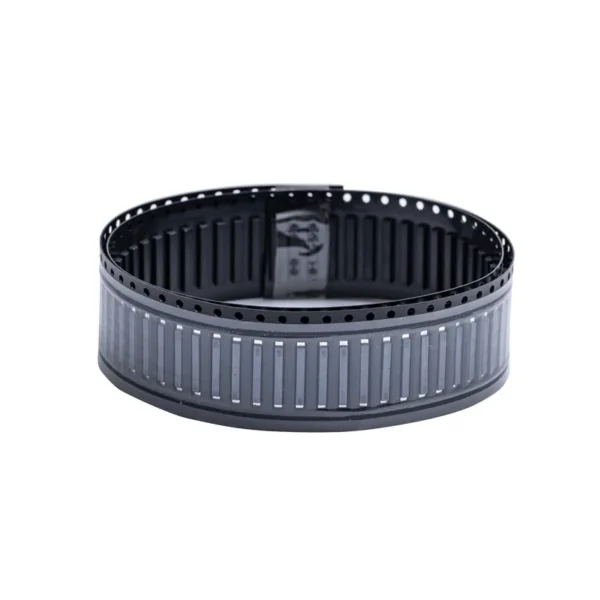

SMD/SMT package: Facilitates efficient automated PCB assembly and compact board layouts.
High overload capacity: Maintains stable electrical performance under heavy current conditions.
Wide operating temperature range: Suitable for automotive electronics, power converters, and industrial control boards.
Dimension
| Series | Length | Width | Thickness | Overcurrent | Tolerance | Our Part |
|---|---|---|---|---|---|---|
| HT | 3.2mm | 1.3mm | 0.6mm | 5A~30A | 1% | HT with Epoxy Encapsulation |
| HT | 5.2mm | 1.5mm | 0.6mm | 5A~30A | 1% | HT with Epoxy Encapsulation |
| HT | 8.2mm | 1.5mm | 1mm | 5A~30A | 1% | HT with Epoxy Encapsulation |
| HT | 10.2mm | 1.5mm | 0.8mm | 5A~30A | 1% | HT with Epoxy Encapsulation |
| HT | 13.2mm | 1.5mm | 0.8mm | 5A~30A | 1% | HT with Epoxy Encapsulation |
Applications
Power electronics, inverters, and DC-DC converters
Current sampling circuits and low-inductance applications
Automotive electronics and electric vehicle (EV) control systems
Home appliance control boards and smart devices
Industrial communication and power supply modules
Customization Options
We provide flexible jumper and busbar solutions to meet your unique design needs, including:
Custom resistance values
Tailored sizes and footprints
Various encapsulation options for environmental protection
Why Choose Our Zero Ohm PCB Jumper?
With years of experience in electronic components manufacturing, our jumpers combine reliability, stability, and ease of assembly. They are ideal for engineers looking to reduce PCB space, minimize inductance, and ensure robust performance in demanding environments.
