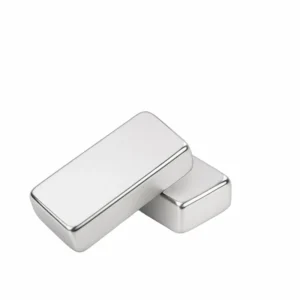

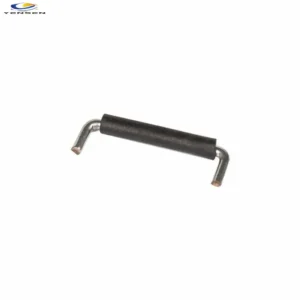

SMD Metal Jumper Bar | High Current PCB Jumper
Length: 3.2mm~13.2mm
Width: 1.3mm-1.5mm
Thickness: 0.6mm~1mm
Over Current: 5A~30A
Tolerance: 1%
Description
SMD Metal Jumper Bar for High-Current PCB Applications
The SMD Metal Jumper Bar is a high-current surface-mount PCB jumper designed to provide a reliable, low-resistance electrical connection between PCB nodes. It is suitable for applications where a conventional 0Ω chip resistor or wire jumper cannot provide sufficient current-carrying capability.
Constructed from a metal alloy plate with a tin-plated surface and protected by a molded insulation layer, this high-current SMD jumper combines reliable SMT soldering, mechanical protection, and electrical isolation in a compact PCB-mounted package.
With rated current capabilities from 10A to 40A, the SMD Metal Jumper Bar provides a compact alternative for high-current PCB connections, circuit bypassing, and power routing. Its non-inductive structure and low resistance make it suitable for power electronics, battery systems, inverter boards, industrial controls, and other high-current electronic assemblies.
Key Features
- High Current Capability: Rated current from 10A to 40A, with customized higher-current configurations available depending on the design.
- Metal Alloy Plate Construction: Available with TFe iron plate or TCu copper plate configurations.
- Tin-Plated Surface: Provides reliable solderability for SMT assembly.
- Molded Insulation: Plastic encapsulation provides electrical isolation and mechanical protection.
- Low Resistance: Provides a low-resistance electrical path for high-current PCB connections.
- Non-Inductive Structure: Designed for applications where low parasitic inductance is required.
- High Overload Capability: Suitable for demanding PCB power connection and bypass applications.
- Wide Operating Temperature Range: -20°C to +150°C.
- SMT Compatible: Designed for surface-mount PCB assembly.
- RoHS Compliant: Halogen-free material options are available.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | SMD Metal Jumper Bar |
| Function | High-Current PCB Electrical Connection / Bypass |
| Construction | Metal Alloy Plate with Molded Insulation |
| Material Options | TFe Iron Plate / TCu Copper Plate |
| Surface Finish | Tin Plated |
| Rated Current | 10A – 40A |
| Resistance | Ultra-Low Resistance Electrical Connection |
| Electrical Characteristics | Non-Inductive / Low Parasitic Inductance |
| Operating Temperature | -20°C to +150°C |
| Mounting | SMT |
| Solderability | Suitable for SMT Reflow Soldering |
| Insulation | Molded Plastic Encapsulation |
| Compliance | RoHS Compliant; Halogen-Free Options Available |
SMD Metal Jumper Bar Dimensions
[Insert product dimensions image here]
The SMD Metal Jumper Bar can be supplied in different dimensions and PCB footprints according to the required current rating, board layout, component height, and mechanical requirements.
For detailed dimensions, recommended PCB land patterns, and available configurations, please contact us for the relevant product drawing.
SMD Metal Jumper vs. Conventional 0Ω Resistor
A conventional 0Ω chip resistor is commonly used as a PCB link or configuration component, but its current-carrying capability is limited by its package size and construction.
The SMD Metal Jumper Bar uses a metal plate structure to provide a larger conductive cross-section and higher current capability while maintaining a compact surface-mount form factor.
It can be considered when a PCB design requires:
- Higher current capability than a conventional 0Ω chip resistor
- A compact SMT connection instead of a wire jumper
- Low electrical resistance
- Reliable soldered PCB connection
- Electrical insulation around the conductive element
- A non-inductive or low-parasitic-inductance connection
Dimensions and Specifications of SMD Metal Jumper Bar
Applications
The SMD Metal Jumper Bar is suitable for high-current PCB connection and power-routing applications, including:
- Power supply and DC power distribution boards
- Battery management and battery power systems
- Inverter and motor control boards
- Industrial automation equipment
- Energy meters and power monitoring equipment
- EMS / PCBA power assemblies
- Power management modules
- High-current electronic modules
- PCB circuit bypass and configuration applications
Custom SMD Metal Jumper Solutions
Different PCB designs may require different current ratings, dimensions, footprints, materials, and insulation structures.
We can support customized SMD metal jumper bar solutions based on application requirements, including:
- Customized dimensions and PCB footprints
- Different current ratings
- TFe or TCu conductive materials
- Customized insulation structures
- Different surface treatments
- Application-specific mechanical configurations
- Engineering samples for design evaluation
Please provide your required current rating, PCB footprint, dimensions, and application conditions when requesting a customized solution.
FAQ
What is an SMD Metal Jumper Bar?
An SMD Metal Jumper Bar is a surface-mount PCB connection component designed to provide a low-resistance electrical path between two PCB nodes. It is commonly used for high-current connections, circuit bypassing, and applications where a conventional 0Ω resistor or wire jumper is not sufficient.
What is the difference between an SMD metal jumper and a 0Ω resistor?
Both components can be used to electrically connect two PCB nodes. However, an SMD metal jumper is specifically designed around a conductive metal element and can provide higher current-carrying capability than many conventional 0Ω chip resistors.
What current ratings are available?
Standard configurations are available from 10A to 40A. Higher-current configurations may be possible depending on the conductive material, dimensions, PCB layout, thermal conditions, and required operating environment.
What materials are available?
The conductive element can be supplied in TFe iron plate or TCu copper plate configurations, with a tin-plated surface for SMT soldering.
Is the SMD Metal Jumper Bar insulated?
Yes. The conductive metal element is protected by a molded plastic insulation structure, providing electrical isolation and mechanical protection.
Can the SMD Metal Jumper Bar be customized?
Yes. Dimensions, PCB footprint, current rating, conductive material, insulation structure, and other mechanical requirements can be customized according to the application.
Is the SMD Metal Jumper Bar suitable for SMT assembly?
Yes. The component is designed for surface-mount PCB assembly and can be supplied for SMT production requirements.
Customization Options
We provide SMD jumper bar and metal jumper solutions for different PCB and application requirements, including:
- Customized dimensions and PCB footprints
- Different current ratings
- Customized insulation structures and protection designs
- Special materials and surface treatments
- Application-specific mechanical and electrical configurations
Contact us for product drawings, specifications, and customized SMD jumper solutions.
