Overview

High Current Copper Busbars are designed for reliable power distribution in industrial equipment, energy storage systems, and power electronics applications. Manufactured from high-conductivity copper materials, these busbars provide excellent current carrying capability, low electrical resistance, and stable mechanical performance for high-power electrical systems.

Copper busbars offer an efficient alternative to traditional cable connections by reducing power loss, improving thermal performance, and providing a cleaner electrical connection structure. The solid copper construction ensures reliable current transmission and long-term stability in demanding operating environments.

Our copper busbars are available with insulation protection options to improve electrical safety, corrosion resistance, and environmental durability. Different specifications, including dimensions, thickness, hole patterns, plating, and insulation treatments, can be provided according to application requirements.

These high current copper busbars are widely used in battery systems, power distribution units (PDUs), energy storage equipment, industrial power supplies, and power conversion systems.

---

Key Features of High Current Copper Busbars

High Current Carrying Capability

Designed for efficient power transmission with excellent conductivity and low electrical resistance, helping reduce energy loss in high-current applications.

Insulation Protection

Optional insulation protection improves electrical safety, prevents accidental contact, and enhances durability in industrial environments.

High Conductivity Copper Construction

Manufactured from quality copper materials to provide stable power distribution performance and excellent thermal conductivity.

Reliable Mechanical Structure

The solid copper design provides strong mechanical performance and supports long-term operation in demanding electrical systems.

Various Specification Options

Available in different sizes, thicknesses, hole patterns, plating treatments, and insulation configurations to meet different installation requirements.

---

Advantages of High Current Copper Busbars

Compared with traditional cable wiring solutions, high current copper busbars provide:

• Lower electrical resistance and reduced power loss
• Higher current carrying capability in compact designs
• Better heat dissipation performance
• Cleaner and more reliable electrical connections
• Improved mechanical stability for industrial applications
• Space-saving power distribution layouts

---

Typical Applications of Copper Busbars

High current copper busbars are widely used in:

• Battery Energy Storage Systems (BESS)
• Power Distribution Units (PDU)
• Industrial power equipment and control cabinets
• Battery packs and energy management systems
• Inverters and power conversion equipment
• Renewable energy systems
• High-current electrical distribution systems

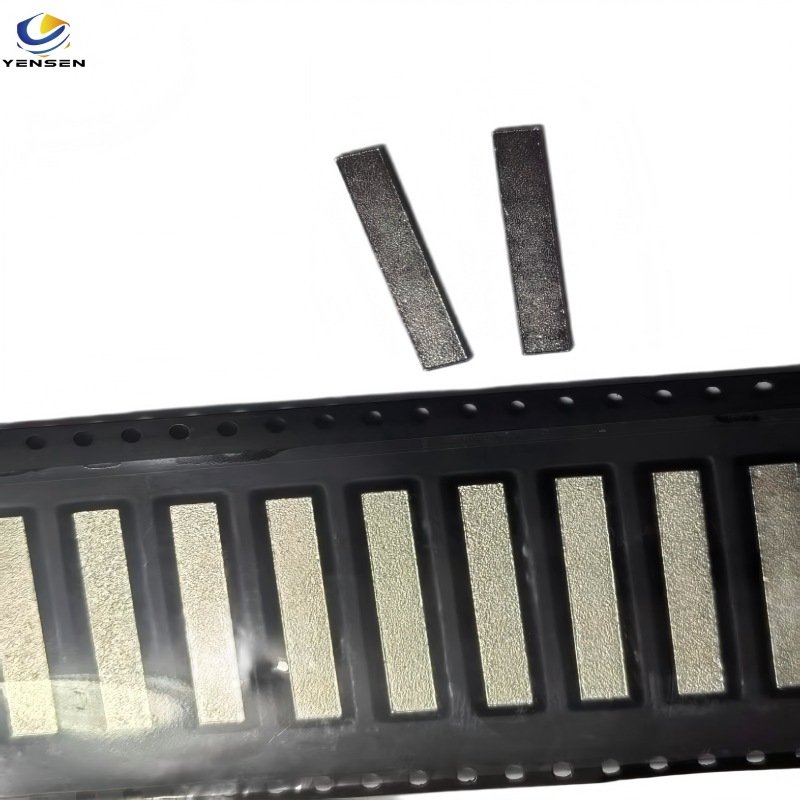

Type	T	2	4.5	11	I
YST	Patch	thickness	width	length	Shape Line

Material: Copper / Customized alloy options
Surface Treatment: Conformal coating / Tin plating / Nickel plating
Application Current: Customized according to design requirements
Customization: Available for dimensions and mounting structure

FAQ

What is a high current busbar?

A high current busbar is a conductive metal component used to distribute electrical power efficiently in high-current systems. Copper busbars are commonly used because of their excellent conductivity and mechanical strength.

Why use conformal coating on a busbar?

Conformal coating provides additional insulation and environmental protection, helping prevent oxidation, moisture damage and electrical short circuits.

Can the copper busbar be customized?

Yes. Dimensions, thickness, hole positions, surface treatment and coating requirements can be customized according to customer application requirements.
