PCB Metal Shunt Jumper Bar (SMD) with Insulating Sleeve
Length: 3.2mm~13.2mm
Width: 1.3mm-1.5mm
Thickness: 0.6mm~1mm
Over Current: 5A~30A
Tolerance: 1%
Description
Overview
The SMD metal shunt jumper bar is a low-resistance PCB-mounted conductor designed for high-current routing and current sensing applications.
Unlike conventional zero-ohm resistors, this metal jumper bar is manufactured from solid alloy material and combined with an insulating sleeve, ensuring excellent electrical stability and mechanical protection.
Key Features of PCB Metal Shunt Jumper Bar
Low Resistance Metal Construction
Provides stable current distribution with minimal power loss.SMD Design for Power PCBs
Suitable for automated assembly and high-current PCB layouts.Insulating Sleeve Protection
Enhances electrical safety and mechanical reliability during operation.High Current Capability
Designed for power supplies, inverter boards, and EMS assemblies.RoHS Compliant Materials
Manufactured using Pb-free materials in compliance with RoHS requirements.

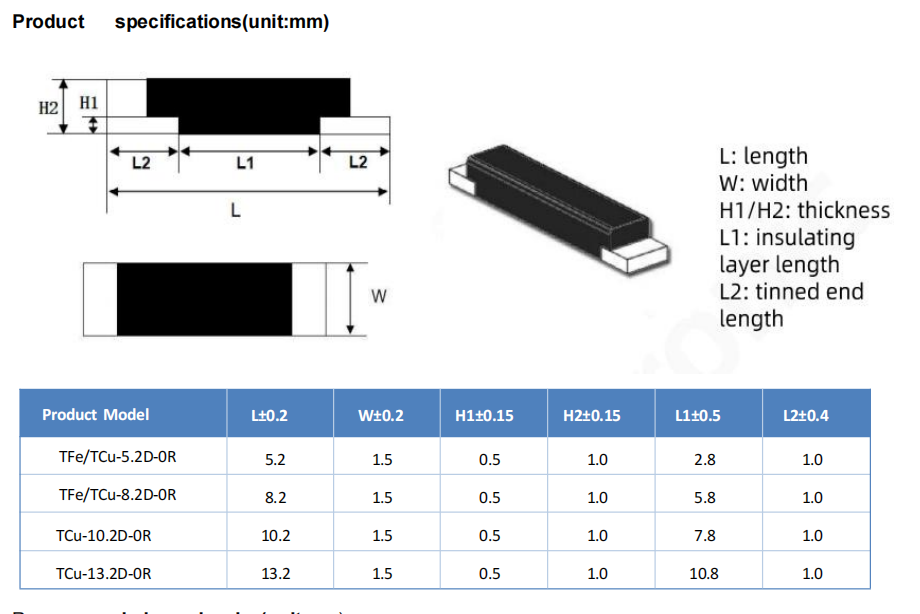

Dimension
| Series | Length | Width | Thickness | Overcurrent | Tolerance | Our Part |
|---|---|---|---|---|---|---|
| HT | 3.2mm | 1.3mm | 0.6mm | 5A~30A | 1% | HT with Epoxy Encapsulation |
| HT | 5.2mm | 1.5mm | 0.6mm | 5A~30A | 1% | HT with Epoxy Encapsulation |
| HT | 8.2mm | 1.5mm | 1mm | 5A~30A | 1% | HT with Epoxy Encapsulation |
| HT | 10.2mm | 1.5mm | 0.8mm | 5A~30A | 1% | HT with Epoxy Encapsulation |
| HT | 13.2mm | 1.5mm | 0.8mm | 5A~30A | 1% | HT with Epoxy Encapsulation |
Typical Applications
The SMD metal shunt jumper bar is widely used in:
Power supply and DC distribution boards
EMS / PCBA assemblies
Battery management systems (BMS)
Inverter and motor drive modules
Energy meters and industrial controllers
RoHS compliance: https://ec.europa.eu/environment/topics/waste-and-recycling/rohs-directive_en
Customization Options
We provide flexible jumper and busbar solutions to meet your unique design needs, including:
Custom resistance values
Tailored sizes and footprints
Various encapsulation options for environmental protection
