High Power U Type Jumper/Shortener – 50A High Current PCB Shunt Resistor
Description
High Power U Type Jumper Resistor
The High Power U Type Jumper Resistor is designed for high-current PCB applications where reliable current conduction, low resistance, and compact installation are required. With a U-shaped structure and robust metal alloy construction, this resistor provides excellent electrical and thermal performance for power electronics systems.
Designed for current levels up to 50A, the U Type Jumper Resistor can be used as a high-current connection component or current sensing element in applications requiring stable performance under demanding operating conditions.
Compared with traditional wire jumpers, this product offers better mechanical strength, controlled resistance characteristics, and improved reliability for high-power PCB designs.

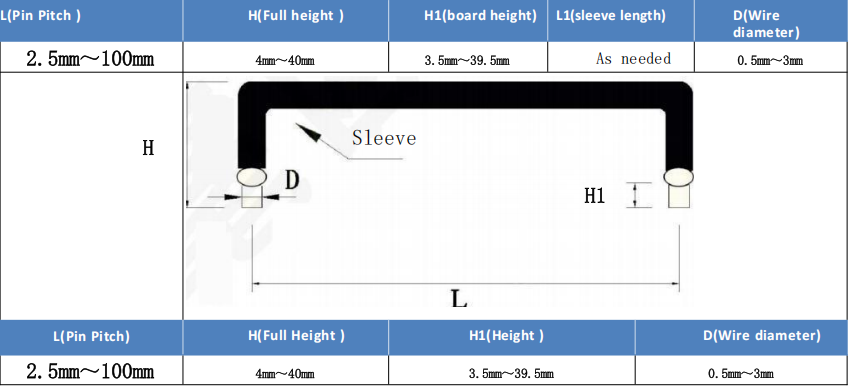

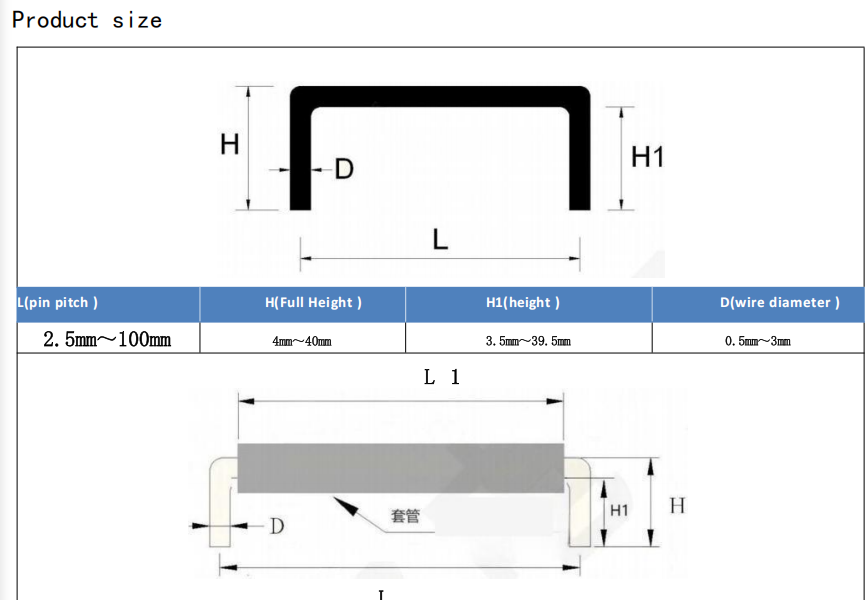

Product Size
Key Features
- High Current Capability: Supports current ratings up to 50A depending on product specifications and operating conditions.
- Low Resistance Design: Optimized for high-current circuits with minimal power loss.
- U-Type Structure: Provides flexible PCB installation and efficient space utilization.
- Excellent Thermal Performance: Suitable for applications with high current loading and heat generation.
- Reliable Metal Alloy Construction: Ensures stable electrical performance and long-term durability.
- Customizable Solutions: Dimensions, resistance values, materials, and protective coatings can be customized according to customer requirements.
Applications
The High Power U Type Jumper Resistor is widely used in power electronic equipment requiring reliable high-current connections and current measurement solutions, including:
- Power supplies
- Inverters and converters
- Industrial control systems
- Motor drives and automation equipment
- Battery management systems (BMS)
- Energy storage systems
- Automotive electronics
- High-power LED lighting systems
Custom U Type Jumper Resistor Solutions
Different PCB layouts and electrical requirements may require customized solutions. We can provide customized U Type Jumper Resistors according to customer drawings, including:
- Pitch and height dimensions
- Resistance value adjustment
- Current rating optimization
- Surface protection options such as heat shrink tubing or epoxy coating
Our engineering team supports customers from initial design evaluation to mass production, providing reliable high-current resistor solutions for industrial and power electronics applications.
What is a U Type Jumper Resistor?
A U Type Jumper Resistor is a high-current PCB component designed for reliable electrical connection and current conduction in power electronic applications.
How much current can this product handle?
The current capability depends on the design and operating conditions. Our DX2525-U13.5 model has been tested for 50A current applications.
Can you customize U Type Jumper Resistors?
Yes. We can customize dimensions, materials, resistance values, and protection options according to customer drawings and requirements.
Do you provide samples for testing?
Yes. Samples are available for customer evaluation before mass production.
