Description

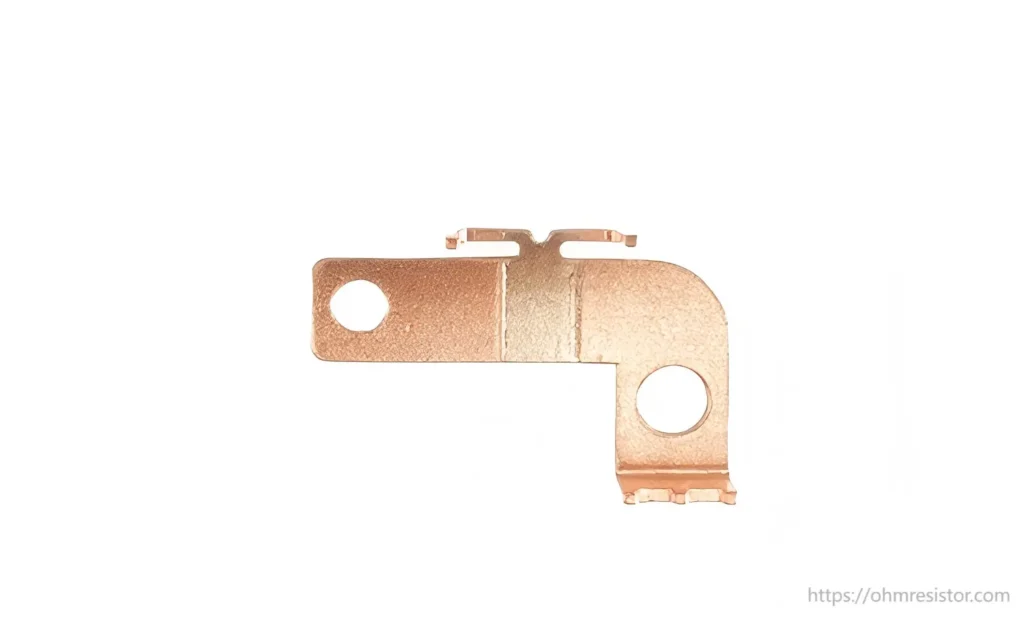

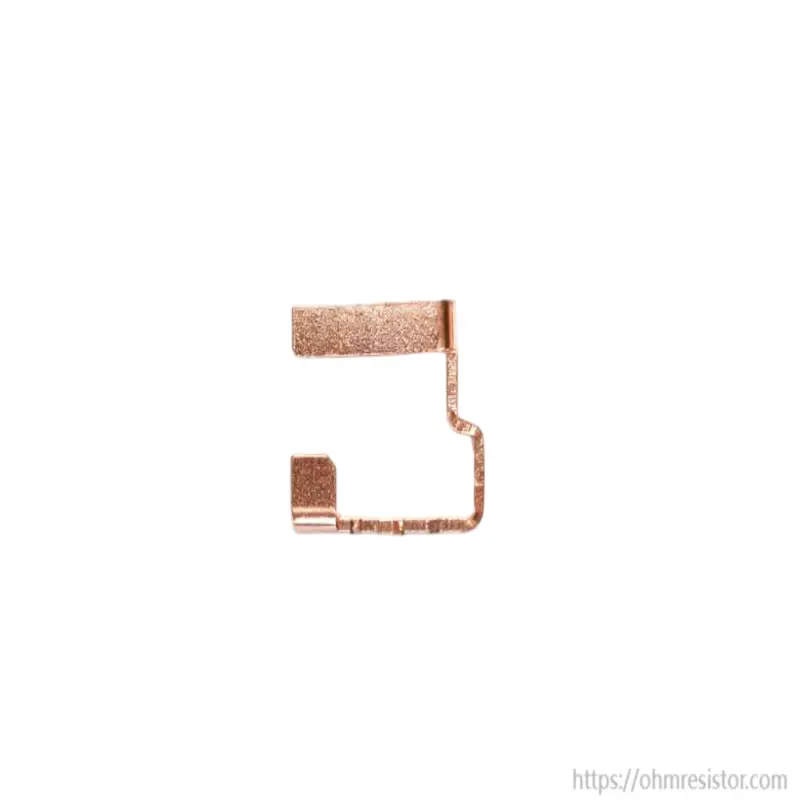

Smart Meter Shunt with E-Beam Welding is a precision Manganin current sensor designed for accurate energy measurement in smart meters and industrial applications. With high stability, low temperature coefficient, and robust E-Beam welding, it ensures reliable performance over long-term operation.
| Parameter | Value |
|---|---|
| Material | Manganin Alloy |
| Welding Type | E-Beam Welded |
| Resistance Range | 50μΩ – 500mΩ (customizable) |
| Accuracy | ±0.5% (typical) |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -40°C ~ 125°C |
| Rated Current | Up to 100A (depending on model) |
Applications
Smart energy meters
Power monitoring and metering
Industrial automation and control systems
EMS and PCBA current sensing
Key Benefits
High Accuracy: Low resistance tolerance ensures precise current measurement.
Durable & Stable: Manganin material with E-Beam welding resists temperature changes and mechanical stress.
Customizable: Supports various resistance values and current ratings to suit different applications.
Easy Integration: Compact design fits seamlessly into smart meters and industrial circuits.
Learn about energy metering standards at IEEE Standards.
Contact us today to request samples or customized smart meter shunt solutions for your energy measurement projects.
