Description

Product Introduction

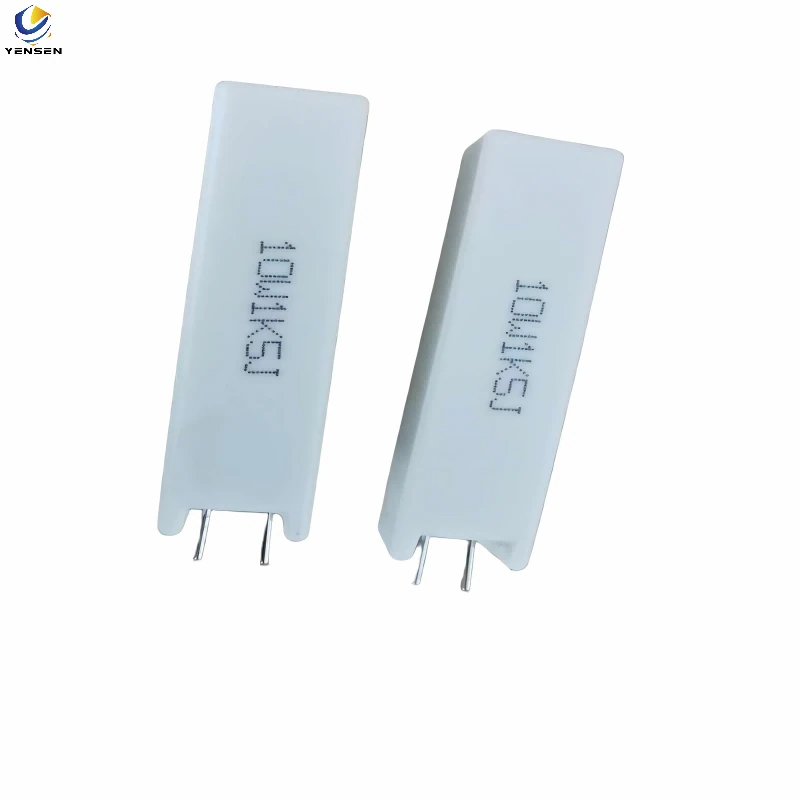

Inrush current limiting resistor applications in SMPS and industrial power systems often use SQM cement resistors for surge protection and power control. SQM vertical ceramic cement resistors are widely used in SMPS and industrial power supply systems for inrush current limiting, DC bus pre-charging, and capacitor discharge protection.

During power-on, high surge current can damage rectifiers, MOSFETs, capacitors, and other critical power components. An effective inrush current limiting resistor helps reduce startup stress, improve system reliability, and extend equipment service life.

Designed for industrial environments, our SQM cement resistors provide stable resistance performance, reliable overload capability, and efficient heat dissipation for continuous operation.

Common Problems with Low-Quality Cement Resistors

In many industrial power systems, resistor failure is one of the hidden causes of power supply breakdown and maintenance issues.

Low-quality cement resistors on the market may suffer from:

• Overstated power rating
• Excessive heat generation under continuous load
• Uneven resistance material distribution
• Resistance drift after long-term operation
• Reduced reliability in surge conditions
• Increased maintenance and replacement cost

A failed resistor may eventually lead to power supply shutdown, unstable startup behavior, or damage to expensive electronic components.

Why Choose Our SQM Cement Resistors

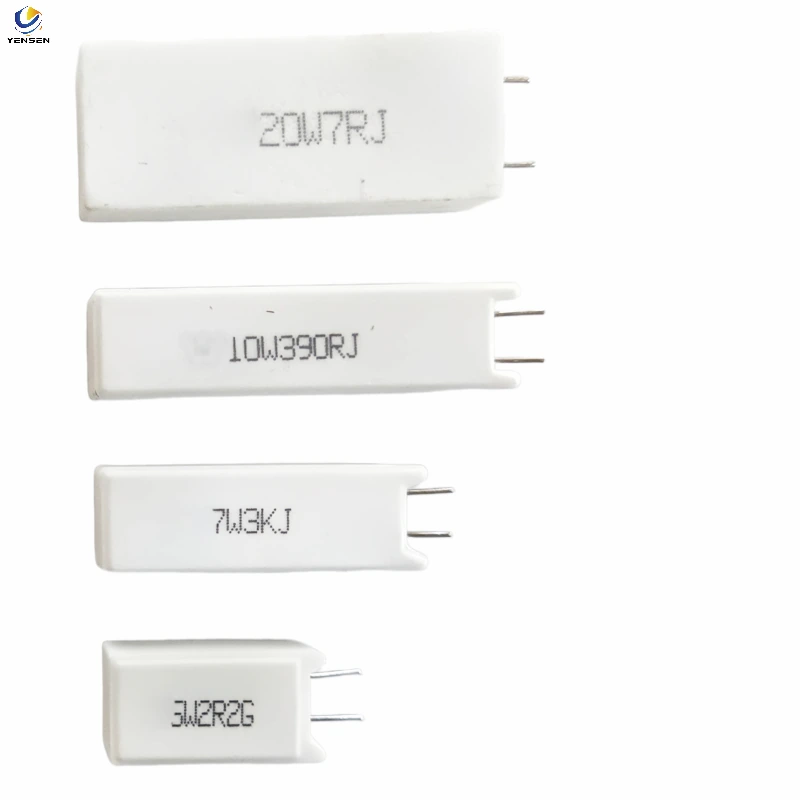

Our SQM/SQP/SQH ceramic cement resistors are designed for long-term reliability in industrial power electronics applications.

Key Advantages

✔ True rated power without exaggerated specifications

✔ Stable resistance material consistency for uniform heat distribution

✔ Reliable overload and surge handling capability

✔ Reduced hotspot risk during continuous operation

✔ Improved long-term resistance stability

✔ Lower system failure and maintenance risk

Instead of competing only on low price, our focus is helping customers improve overall system reliability and reduce long-term operational cost.

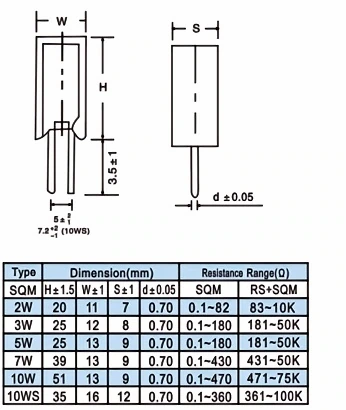

Dimension :

Main Functions in SMPS & Industrial Power Systems

In SMPS and industrial power systems, SQM/SQP/SQH resistors are mainly used for:

• Inrush current limiting during startup
• DC bus pre-charge circuits
• High-voltage capacitor discharge
• Snubber and damping circuits
• Surge absorption and power protection
• Industrial control power systems

These functions help protect sensitive components such as MOSFETs, IGBTs, rectifiers, and electrolytic capacitors from excessive startup current and voltage stress.

Typical Applications

• SMPS power supplies
• Industrial control systems
• Inverters and UPS systems
• Motor drive circuits
• Automation equipment
• Industrial power conversion systems
• HVAC control systems
• High-voltage capacitor discharge circuits

FAQ

Why is an inrush current limiting resistor important in SMPS systems?

It helps reduce startup surge current that may damage power components such as rectifiers, capacitors, and MOSFETs.

What problems can low-quality resistors cause?

Poor-quality resistors may overheat, drift in resistance value, or fail under continuous load and surge conditions, increasing system failure risk.

What is the advantage of your SQM cement resistor?

Our resistors use stable resistance materials and true rated power design for improved heat distribution, overload performance, and long-term reliability.

Can these resistors handle repeated startup cycles?

Yes. They are designed for repeated inrush current conditions in industrial power supply and SMPS applications.

Do you support custom resistance values and dimensions?

Yes. OEM and customized specifications are available according to customer application requirements.
