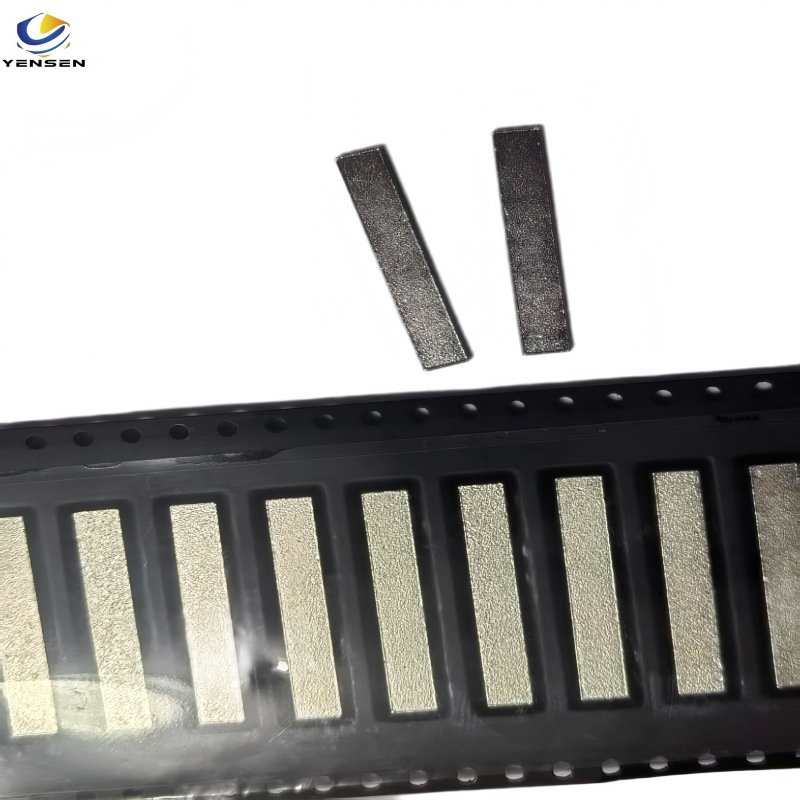

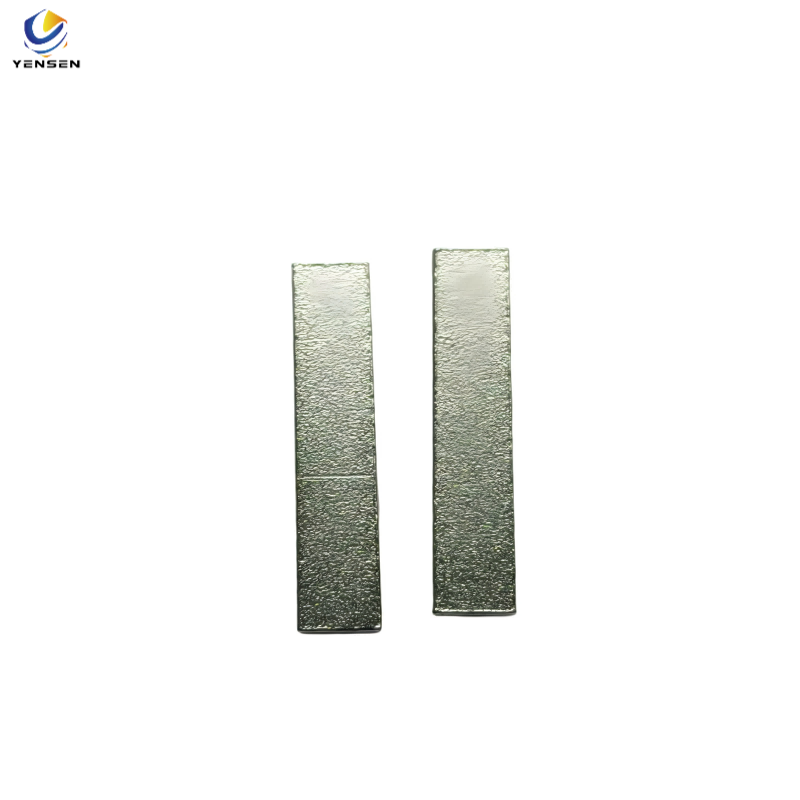

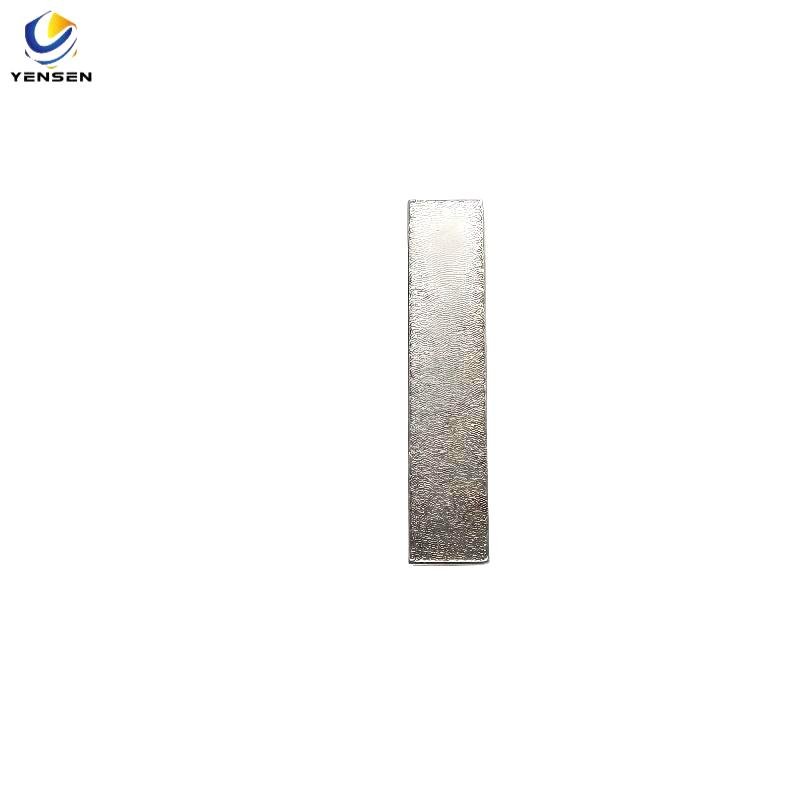

Current Sensing Busbar with Integrated Shunt

This Current Sensing Busbar with Integrated Shunt is a compact and efficient solution for accurate current measurement in high-power applications such as EV battery systems and power modules. It combines high conductivity copper busbars with a precision resistive element, allowing real-time current monitoring with minimal space requirements.

Key Features

1. Compact and lightweight design – Ideal for space-constrained environments

2. Excellent weldability – Copper surface is electroplated for stable and secure connections

3. High reliability – Withstands high current loads and thermal stress

4. ROHS compliant – Environmentally friendly and safe for global markets

5. Customizable – Resistance value, size, and mounting design can be tailored to your needs

   Typical Applications

   • EV Battery Packs

   • BMS (Battery Management Systems)

   • Motor Control Units

   • Power Distribution Modules

   • DC/AC Energy Conversion Systems

     Type	T	2	4.5	11	I
     YST	Patch	thickness	width	length	Shape Line



   • Integrated current sensing busbar applied in industrial motor control and inverter systems
   •
