Description

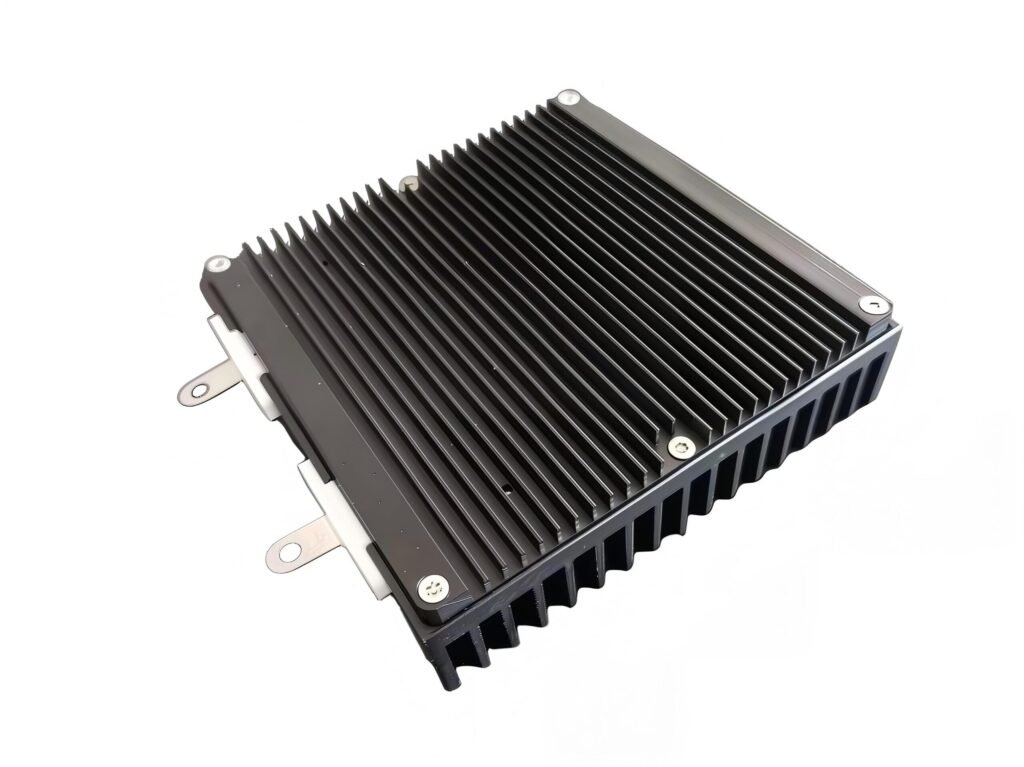

low inductance Air cooled resistor is designed for high power electronic systems requiring stable performance under high frequency switching environments.
With power ratings up to 2.2kW, this resistor module is optimized for applications such as AI data center power systems, IGBT power electronics, inverter systems and common-mode filter structures.
The forced air cooling design ensures reliable thermal performance during continuous duty operation.
Features of the Low Inductance Air Cooled Resistor
High Power Capability
Supports continuous power up to 2.2kW, suitable for high power electronic equipment and industrial applications.
Ultra Low Inductance Design
Optimized winding structure minimizes parasitic inductance, improving system stability in high frequency switching environments.
Forced Air Cooling
Air-cooled module design provides efficient heat dissipation and supports continuous high-power operation.
Strong Surge Resistance
Designed to withstand surge current conditions common in power electronics systems.
High Reliability
Stable performance in demanding environments including high frequency and high power conditions.
Applications of Low Inductance Air Cooled Resistors
This high power resistor is widely used in:
AI Data Center Power Systems
Power infrastructure and filtering circuits for large-scale computing systems.
IGBT Power Electronics
Used in inverter circuits, power converters and industrial motor drives.
High Frequency Switching Systems
Reduces oscillation and stabilizes system performance.
Common Mode Filter Networks
Used as damping elements in EMI suppression structures.
Technical Specifications of the Low Inductance Air Cooled Resistor
| Parameter | Value |
|---|---|
| Rated Power | up to 2.2kW |
| Resistance Range | Customizable |
| Inductance | ≤1.7 µH |
| Cooling Method | Forced Air Cooling |
| Surge Capability | High |
| Operating Temperature | -10°C to +45°C |
| Mounting | Module Type |
Customization Options
We support customization including:
Resistance value
Terminal configuration
Mounting structure
Power rating optimization
Lead wire configuration
Custom designs are available according to specific application requirements.
Request a Quote
If you are looking for low inductance high power resistors for high frequency power electronics, please contact our engineering team for technical support and quotations
