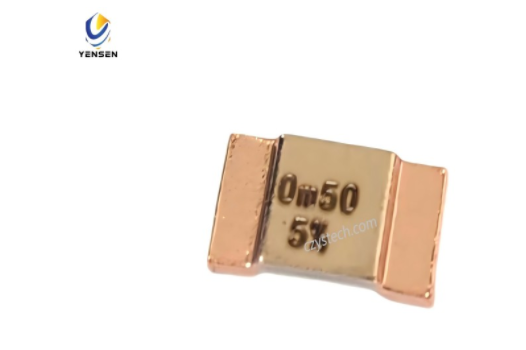

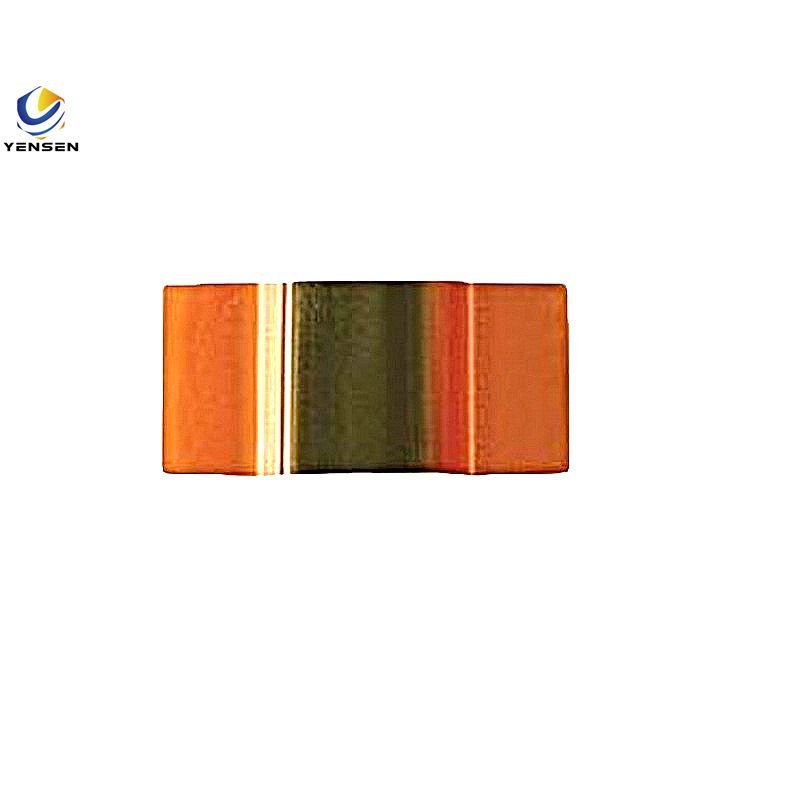

3920 SMD Metal alloy High Power Chip Current Sensing Shunts
- Rated Power: Up to 5W
- Low resistance values: 0.2mΩ ~ 5mΩ
- Excellent stability and heat dissipation
- Solderable SMD construction, RoHS compliant
Description
3920 SMD Shunt Resistor for High Current Measurement
This high-power surface-mount metal alloy shunt resistor is designed for accurate current sensing in energy storage, power management, and inverter systems. The 3920 package delivers excellent thermal performance and low TCR, making it ideal for demanding industrial applications.Electron beam welding process, good welding performance, easy to weld,High reliability, high overload capacity, high product accuracy.
Key Features of Our 3920 SMD Metal Alloy Shunt
- Rated Power: Up to 5W
- Low resistance values: 0.2mΩ ~ 5mΩ
- Excellent stability and heat dissipation
- Solderable SMD construction, RoHS compliant
Applications
- Battery Management Systems (BMS)
- DC-DC Converters
- Inverters and Power Modules
- Automotive Electronics
Welded Shunt Resistor Technical Specifications
| Power (W) | Material Size | B (mm) | W (mm) | A (mm) | C (mm) | H (mm) | D1 (mm) | D2 (mm) | Resistance Value (mΩ) |
|---|---|---|---|---|---|---|---|---|---|
| 3 | M2512 | 3.0±0.3 | 6.3±0.2 | 1.2±0.2 | 3.1±0.3 | 0.5±0.1 | 1.5 | 1.5 | 0.3 |
| 0.88 | |||||||||
| 0.5 | |||||||||
| 1 | |||||||||
| 5 | M3920 | 4.5±0.3 | 10±0.2 | 2.2±0.2 | 5.1±0.4 | 0.5±0.1 | 1.5 | 1.5 | 0.2 |
| 1.37 | |||||||||
| 0.3 | |||||||||
| 0.83 | |||||||||
| 7 | M5930 | 5.0±0.3 | 15±0.3 | 4.2±0.3 | 7.6±0.4 | 0.5±0.1 | 1.5 | 1.5 | 0.2 |
| 0.75 | |||||||||
| 0.4 | |||||||||
| 0.6 |
Why Choose our shunts?
In the bustling marketplace of current measurement, The shunts rise above the fray. It’s not merely about measuring current; it’s about empowering innovation, safeguarding systems, and unlocking the full potential of your electronic designs. Choose us, and set sail towards a future of unmatched precision and reliability
