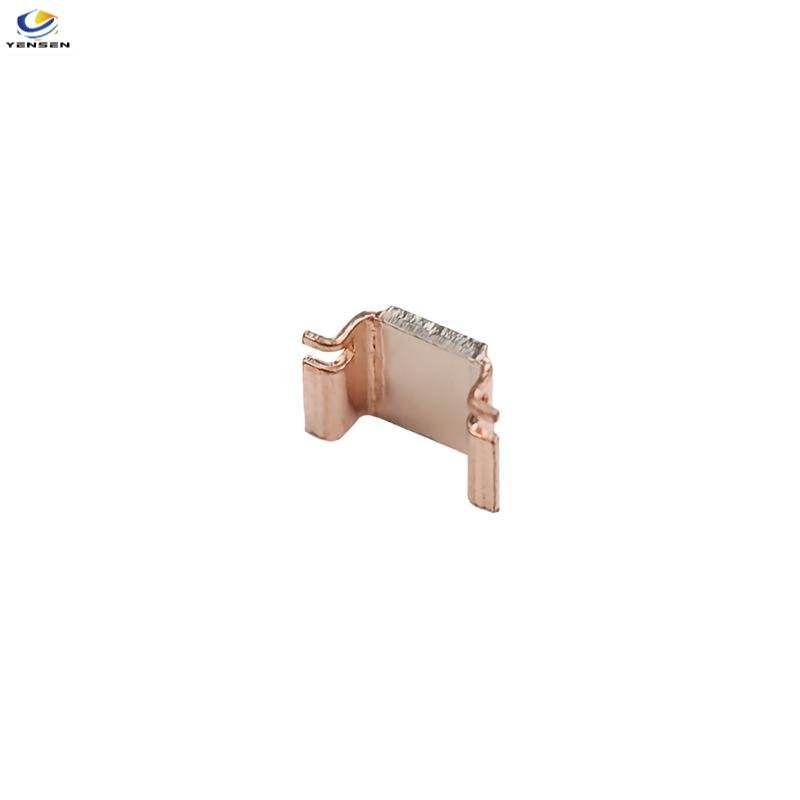

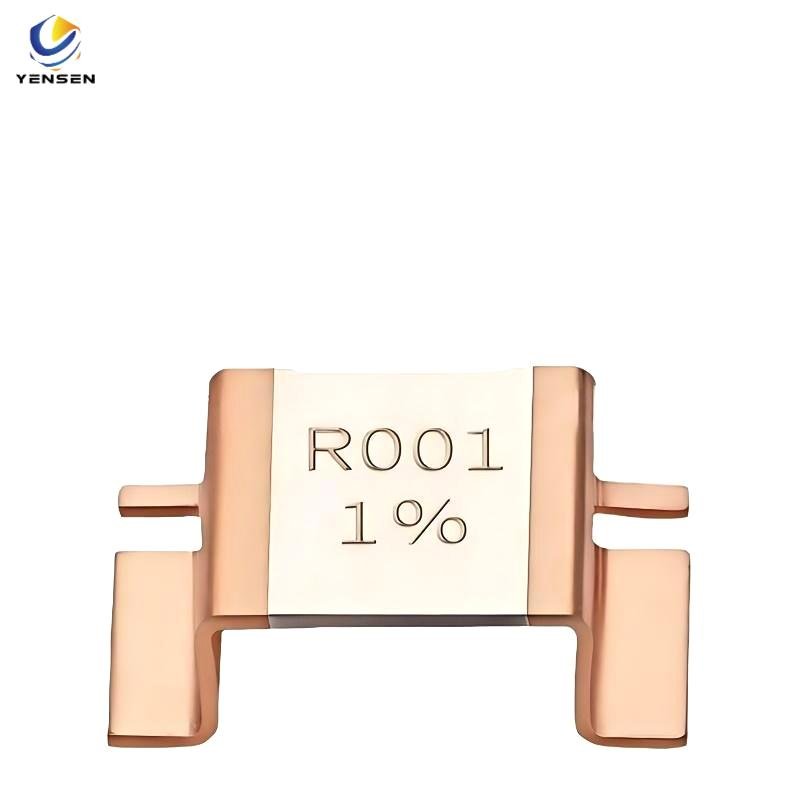

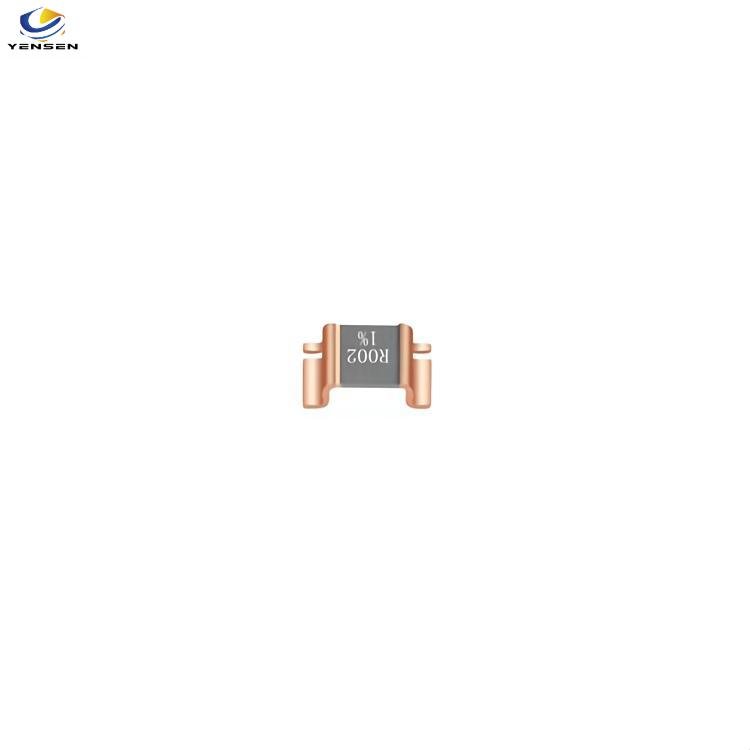

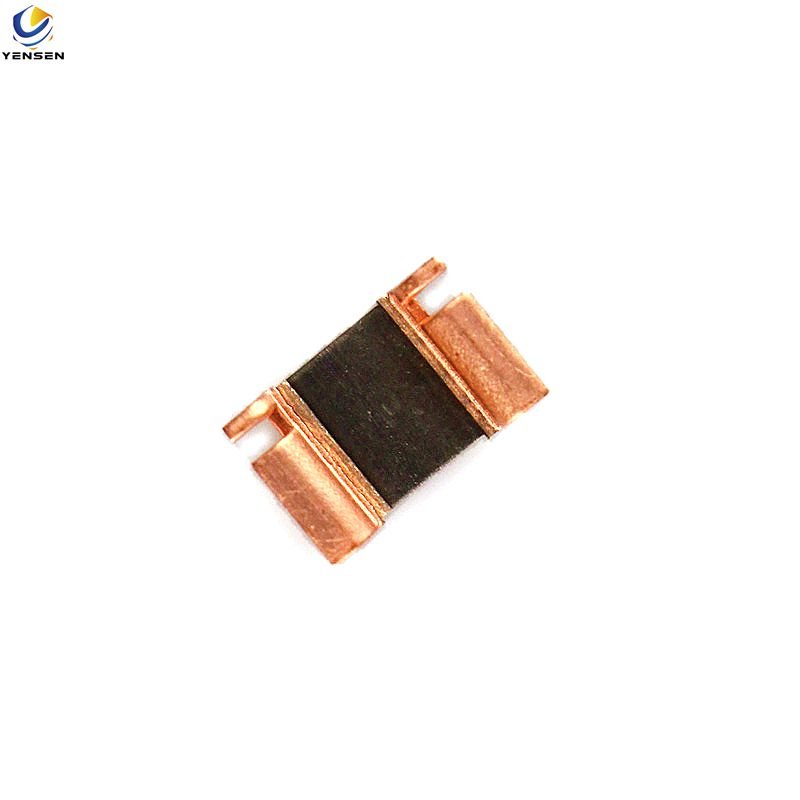

SMD Chip Shunt Resistor 4026 Precision with 4-Terminal Type
Resistance range: 0.2mΩ–1mΩ
Structure: 4-terminal SMD chip, 4026 package
Material: Manganin alloy
Temperature range: -55°C to +175°C
Inductance: <10Ω
TCR: 25–50ppm/°C
Standards: RoHS, AEC-Q200
Custom specs supported upon request
Description
Overview
Our 4026 SMD chip shunt resistor provides high-precision current sensing with low thermal EMF. Its four-terminal design ensures accurate PCB integration and reliable measurements.
The 4026 Four-Terminal Precision SMD Chip Shunt Resistor is engineered for compact electronic systems, offering ultra-low resistance values from 0.2 mΩ to 1 mΩ. It delivers excellent reliability and weldability, making it ideal for power management, energy storage, and other applications where precision and thermal stability are essential.
Key Features of SMD Chip Shunt Resistor
- Electron beam welding process for strong joints and easy soldering
- High reliability and overload tolerance in demanding environments
- Non-inductive design with wide temperature range and inductance <10Ω
- Stable TCR of 25~50ppm/°C ensures measurement accuracy
- Compliant with RoHS and AEC-Q200 automotive-grade standards
Specifications
Type W (mm) L (mm) H (mm) R (mm) N (mm) S (mm) U (mm) T (mm) VB-0.2mR 6.7±0.5 10.1±0.5 3.6±0.5 5.0±0.2 1±0.15 0.7±0.1 2.0±0.2 0.6±0.15 VB-0.3mR 6.7±0.5 10.1±0.5 3.6±0.5 5.0±0.2 1±0.15 0.7±0.1 2.0±0.2 0.6±0.15 VB-0.5mR 6.7±0.5 10.1±0.5 3.3±0.5 5.0±0.2 1±0.15 0.7±0.1 2.0±0.2 0.6±0.15 VB-0.7mR 6.7±0.5 10.1±0.5 3.0±0.5 5.0±0.2 1±0.15 0.7±0.1 2.0±0.2 0.4±0.15 VB-1mR 6.7±0.5 10.1±0.5 3.0±0.5 5.0±0.2 1±0.15 0.7±0.1 2.0±0.2 0.4±0.15 VB-2mR 6.7±0.5 10.1±0.5 3.0±0.5 5.0±0.2 1±0.15 0.7±0.1 2.0±0.2 0.4±0.15 VB-3mR 6.7±0.5 10.1±0.5 3.0±0.5 5.0±0.2 1±0.15 0.7±0.1 2.0±0.2 0.4±0.15 VB-4mR 6.7±0.5 10.1±0.5 3.0±0.5 5.0±0.2 1±0.15 0.7±0.1 2.0±0.2 0.4±0.15 - Achieve ultra-precise current sensing with our 4026 four-terminal shunt resistor—designed for stability, reliability, and seamless integration into your power-critical applications.
Applications
Battery Management Systems (BMS)
Industrial motor drives and inverters
Power modules and smart meters
