Description

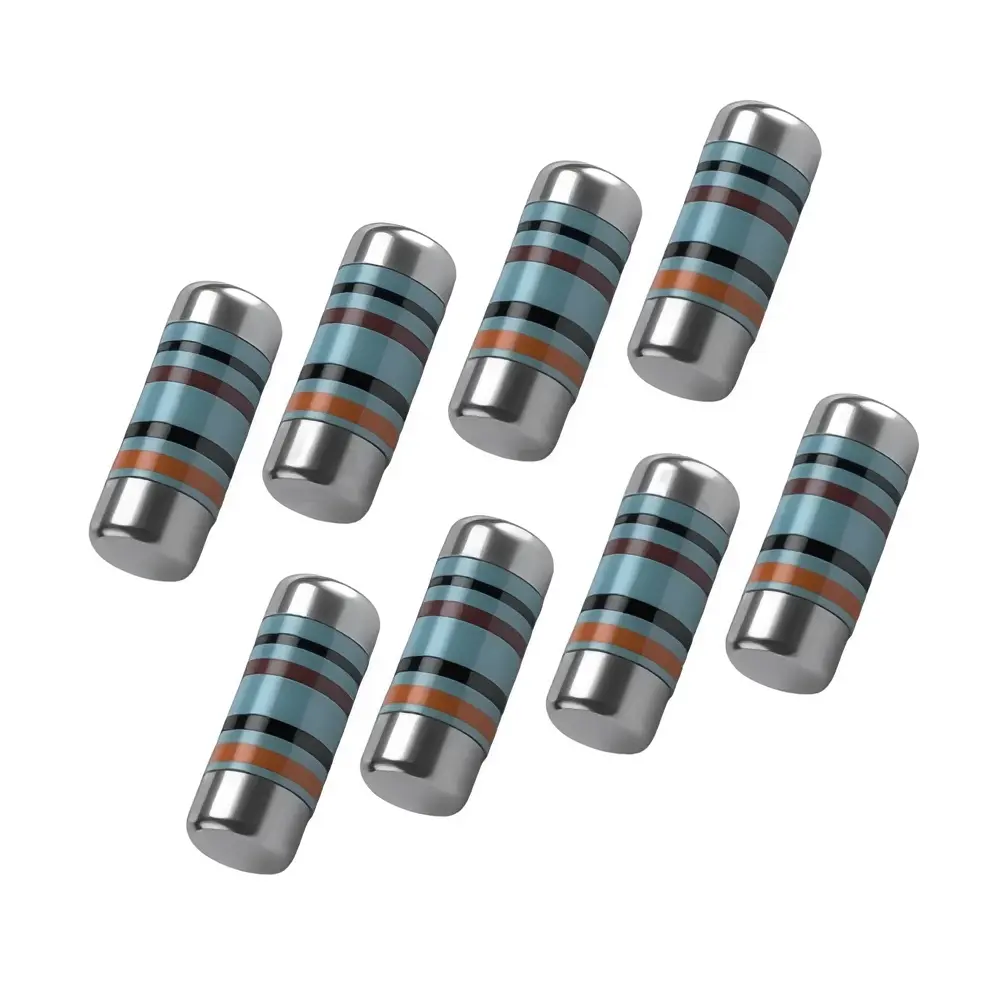

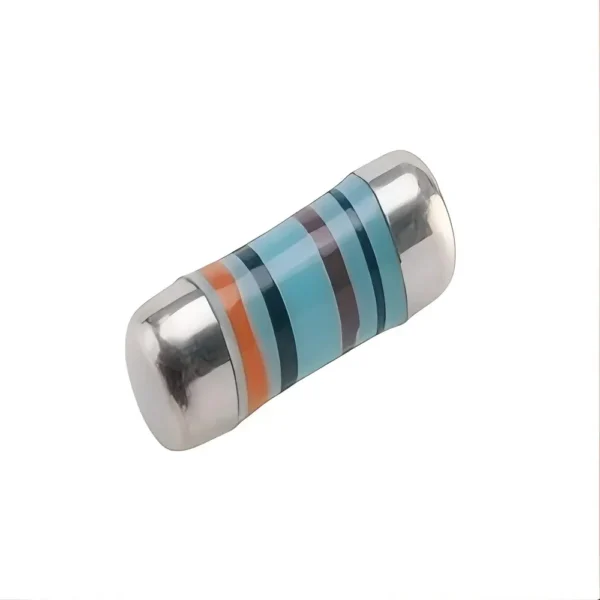

Metal Film High Frequency MELF Resistors are designed for precision and stability in demanding RF and high-frequency applications. With their cylindrical MELF package, these resistors provide superior heat dissipation and reliability compared to standard chip resistors.
Features
1.AEC-Q200 Compliance
2.Thin film technology
3.Excellent overall stability
4.Sn termination on Ni barrier layer
5.Tight tolerance down to ±0.1%
6.Extremely low TCR down to±5 PPM/C
7.High power rating up to 1 Watts
8.SMD enabled structure
9.Lead-free and RoHS compliant
| Product Type | Encapsulator | Rated Power | Resistance | Precision | TCR (PPM/°C) |
|---|---|---|---|---|---|
| CSV series | 0102: 2.2 × 1.1 0204: 3.5 × 1.4 0207: 5.9 × 2.4 | T: 1W U: 1/2W V: 1/4W G: 2/5W P: 1/5W W: 1/8W L: 0.3W | 0010: 1Ω 1R20: 1.20Ω 1000: 100Ω 2201: 2200Ω 1001: 1KΩ 1004: 1MΩ | B: ±0.1% C: ±0.25% D: ±0.5% F: ±1% J: ±5% | S: ±5 B: ±10 N: ±15 C: ±25 D: ±50 E: ±100 |
Construction &Dimension
| Type | L (mm) | L1 (mm) | φD (mm) | φD1 (mm) | K (mm) | Weight per 1000 pcs (g) |
|---|---|---|---|---|---|---|
| 0102 | 2.20 ± 0.10 | 1.10 | 1.10 ± 0.10 | D +0 / -0.15 | 0.45 ± 0.05 | 7.7 |
| 0204 | 3.50 ± 0.20 | 1.70 | 1.40 ± 0.15 | D +0 / -0.20 | 0.80 ± 0.10 | 18.7 |
| 0207 | 5.90 ± 0.20 | 2.90 | 2.20 ± 0.20 | D +0 / -0.20 | 1.30 ± 0.10 | 80.9 |
TECHNICAL SPECIFICATIONS
| DESCRIPTION | CSV0102 | CSV0204 | CSV0207 |
|---|---|---|---|
| Resistance range | 1Ω2-1MΩ;0Ω | 0.1Ω-3.4MΩ;0Ω | 0.1Ω-3.4MΩ;0Ω |
| Resistance tolerance | ±5%; ±1%; ±0.5%; ±0.25%; ±0.1% | ±5%; ±1%; ±0.5%; ±0.25%; ±0.1% | ±5%; ±1%; ±0.5%; ±0.25%; ±0.1% |
| Temperature coefficient | ±100ppm/℃; ±50ppm/℃; ±25ppm/℃; ±15ppm/℃ | ±100ppm/℃; ±50ppm/℃; ±25ppm/℃; ±15ppm/℃; ±10ppm/℃; ±5ppm/℃ | ±100ppm℃;±50ppm/℃;±25ppm/℃; ±15ppm/℃;±10ppm/℃;±5ppm/℃ |
| Operation mode | Standard | High power | Standard / High power |
| Power rating P₇ | 1/8W / 1/5W | 0.3W / 1/4W | 2/5W / 1/2W / 1W |
| DESCRIPTION | CSV0102 | CSV0204 | CSV0207 |
|---|---|---|---|
| Resistance range | 1Ω-1MΩ;0Ω | 0.10-3.4MΩ;0Ω | 0.10-3.4MΩ;0Ω |
| Resistance tolerance | ±5%; ±1%; ±0.5%; ±0.25%; ±0.1% | ±5%; ±1%; ±0.5%; ±0.25%; ±0.1% | ±5%; ±1%; ±0.5%; ±0.25%; ±0.1% |
| Temperature coefficient | ±100ppm/℃; ±50ppm/℃; ±25ppm/℃; ±15ppm/℃ | ±100ppm/℃; ±50ppm/℃; ±25ppm/℃; ±15ppm/℃; ±10ppm/℃; ±5ppm/℃ | ±100ppm/℃; ±50ppm/℃; ±25ppm/℃; ±15ppm/℃; ±10ppm/℃; ±5ppm/℃ |
| Operation mode | Standard / High power | Standard / High power | Standard / High power |
| Power rating P7o | 1/8W / 1/5W | 0.3W / 1/4W | 2/5W / 1/2W / 1W |
| Operating voltage Umax | 150V / 200V | 200V / 200V | 200V / 300V / 350V |
| Operating temperature range | -55℃~155℃ | -55℃~155℃ | -55℃~155℃ |
| Max. resistance change at P70 for resistance range, △R/R max., after 1000h | ≤0.5% | ≤0.5% | ≤0.5% |
Derating Curve
Applications:
RF circuits and telecom equipment
Medical electronics and instrumentation
Industrial control and automation systems
High-frequency power supplies
If you need consistent performance in high-frequency environments, our metal film MELF resistors are the right choice.
