Description
Overview

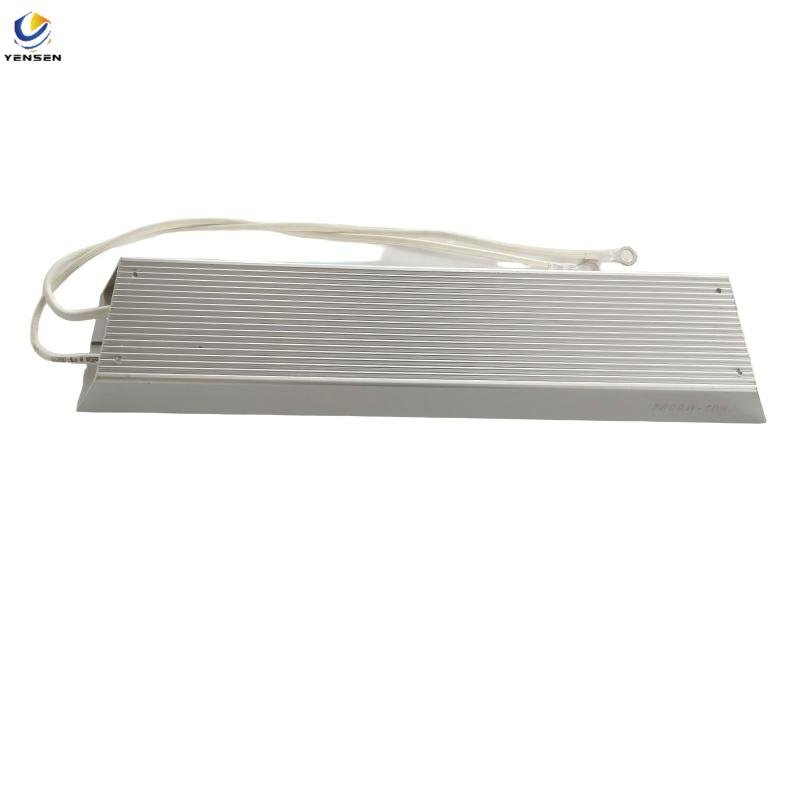

The 600W RXLG Braking Resistor with aluminum shell is ideal for VFDs, servo drives, and motor control systems requiring fast energy dissipation. It offers excellent thermal management, a compact design, and high overload capacity to absorb regenerative energy during deceleration—preventing overvoltage and extending equipment life. Perfect for demanding automation and motion control applications.
Specification
| Parameter | Specification |
|---|---|
| Rated Power | 600W |
| Resistance Range | 5Ω – 500Ω (customizable) |
| Tolerance | ±5% standard (±1% optional) |
| Housing Material | Aluminum shell |
| Mounting | Panel or chassis mount |
| Operating Temp. | -55°C to +200°C |
| Optional Features | Thermal switch, leads, logo, resistance customization |
Features
| Feature | Description |
|---|---|
| High Power Handling 600W Continuous | Supports frequent braking cycles in medium-power motor systems without overheating. |
| Efficient Aluminum Heat Sink Design | Aluminum housing ensures rapid heat dissipation and long-term thermal reliability. |
| Rugged & Vibration-Resistant | Anodized shell construction ensures durability in harsh industrial and mobile environments. |
| Stable Resistance Tolerance | Wire-wound precision ensures low inductance and stable braking performance under load. |
Applications
VFD motor braking (0.75~7.5kW)
Servo system energy absorption
Conveyors, cranes, elevators
HVAC compressors and chillers
UPS bypass braking systems
- The 600W RXLG Braking Resistor is ideal for rapid energy dissipation in VFD and servo systems. For detailed standards on braking resistors, visit the IEC official standards page. To understand the basics of braking resistors, see the Wikipedia article on Braking Resistors.
Customization Available
We support OEM/ODM for resistance value, power rating, dimensions, and thermal protection. Contact us for tailored solutions to your motor control systems.
Check out our full range of RXLG Aluminum Braking Resistors to find the ideal solution for your VFD or servo system application.
FAQ
Q1: What is the function of a 600W aluminum braking resistor?
A: It dissipates regenerative energy generated during deceleration in VFDs, servo drives, and motor control systems. This prevents overvoltage and protects drive components from damage.
Q2: Where can I use a 600W RXLG braking resistor?
A: This resistor is ideal for medium-power applications, such as CNC machines, elevators, industrial automation, textile machinery, and conveyor systems.
Q3: What is the typical resistance range available?
A: The standard resistance range is from 5Ω to 500Ω. Custom resistance values can be provided upon request.
Q4: Does this resistor support thermal protection?
A: Yes. An optional thermal switch can be integrated to provide overheat protection and enable safer operation.
Q5: How is the 600W aluminum Housed braking resistor mounted?
A: It supports panel or chassis mounting with a rugged aluminum shell designed for both indoor and industrial environments.
Q6: Can this resistor be customized?
A: Absolutely. Options include resistance value, lead length, connector types, laser marking (logo), and thermal switch integration.
