Showing all 6 results

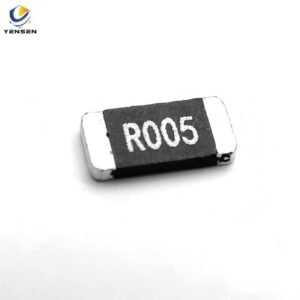

Size: 1206 (3.2mm × 1.6mm)
Resistance Range: Typically 0.5mΩ to 100mΩ
Tolerance: ±1% to ±5%
Power Rating: 0.5W to 1W (depending on the specific model)
Temperature Coefficient of Resistance (TCR): Low TCR, typically around ±75 ppm/°C
Operating Temperature Range: -55°C to +170°C
Material: Metal alloy (such as Ni-Cr or Cu-Mn)
Packaging: Tape and reel, suitable for automated SMD assembly

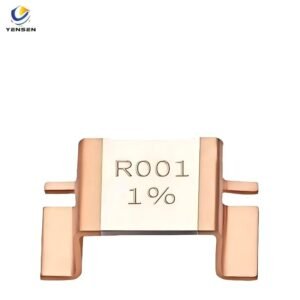

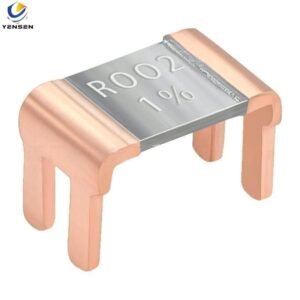

Overview The 4026 Four-Terminal Precision Chip Shunt Resistor is engineered for accurate current sensing in compact electronic systems, offering ultra-low resistance values (0.2mΩ to 1mΩ) with outstanding reliability and weldability. Ideal for automotive, energy storage, and power management applications where precision and thermal stability are critical. Features Electron beam welding process for strong joints and…
●Accuracy ±0.5%, ±1%±5%
●Electron beam welding process.
●Alloy material: manganese copper (M), kama (K), iron chromium aluminum (F.
●Operating temperature range: -55C~+175℃
●Good product consistency, high reliability, stability, strong pulse resistance.

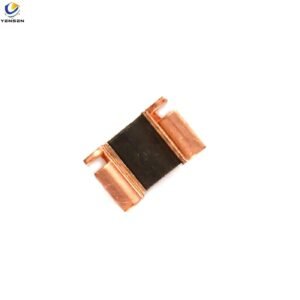

Kelvin-Type SMT Metal Strip Shunt Resistor for Power Modules Our Kelvin-Type SMT Metal Strip Shunt Resistor is engineered for high-accuracy current sensing in compact power modules. Featuring a 4-terminal (Kelvin) design, it ensures precise voltage readings by eliminating lead resistance errors. Ideal for surface-mount PCB applications, this low-ohmic resistor offers excellent thermal stability, high reliability,…
● Power: 1W~3W
● Resistance value: 1mR~500mR
● Accuracy: ± 0.5% ± 1% ± 5% ● Temperature coefficient (TCR): ≤± 50ppm, ± 75ppm
● Meet ROHS requirements and halogen-free requirements
