1KW Metal clad Chassis Mount Dynamic Braking Resistor - Image 2
1KW braking resistor

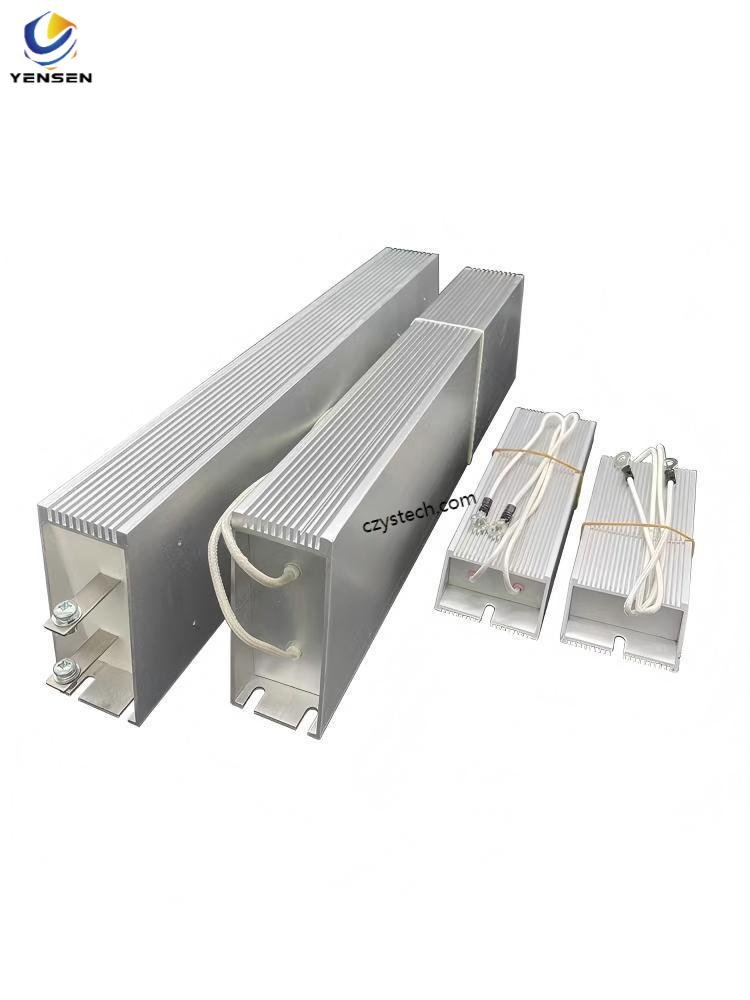

1KW Metal clad Chassis Mount Dynamic Braking Resistor

-Rated Power 1KW -5KW

Resistance ：0.01Ω~100KΩ

Tolerance：0.1%,±1%,±2%,±5%,±10%

T.C.R.：±100PPM~±400PPM

Mounting：Chassis

Technology：Wirewound Or Metal film

Category:

Description

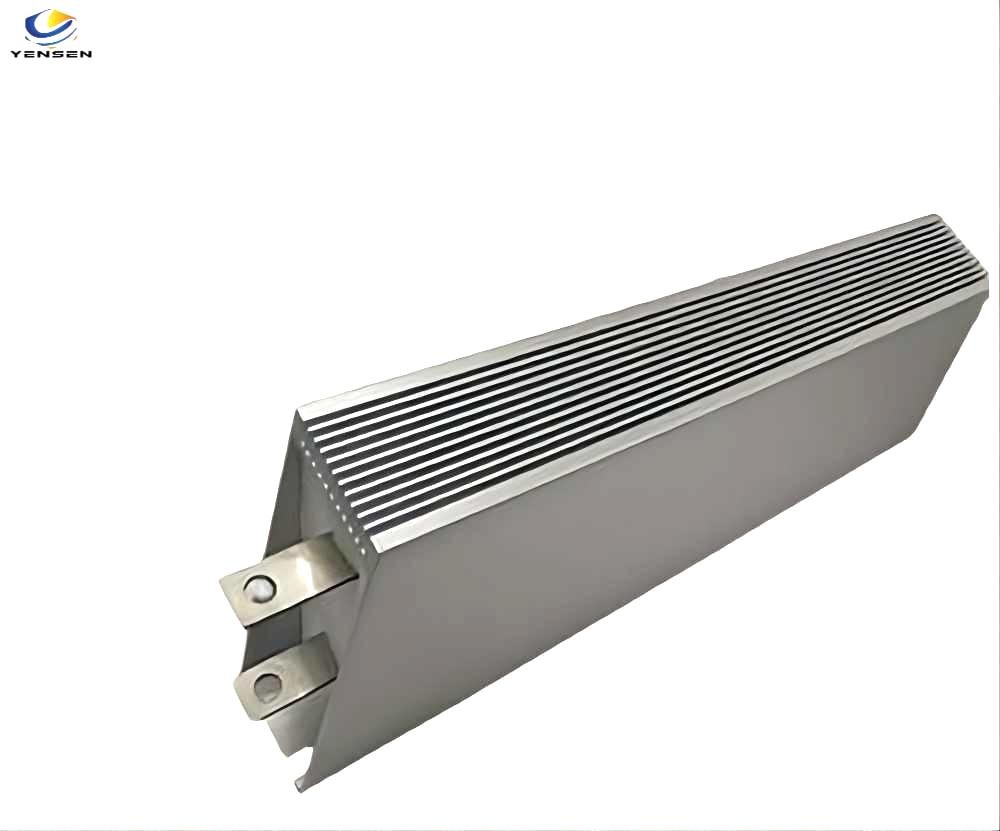

1KW Metal Clad Dynamic Braking Resistor for AC Drives and Inverters

This 1KW dynamic braking resistor features a durable aluminum housing and chassis mount structure, ideal for motor drive systems and industrial inverters. It ensures rapid energy dissipation during braking, enhancing system safety and performance.

Key Features

  • Power rating: 1KW
  • Metal clad aluminum housing for efficient heat dissipation
  • Chassis mount design for stable installation
  • High surge handling and long service life
  • Available in custom resistance values

Typical Applications

  • VFDs (Variable Frequency Drives)
  • Industrial motor control
  • Elevator and crane systems
  • Energy braking in automated machinery

Advanced Build for Heat and Safety

Our brake resistors are built for durability, safety, and efficient energy conversion during motor braking.

  • Core Structure: Made from high-temperature and insulating materials for long-term reliability under demanding conditions.

  • Lead Wires: Feature a double-layer protection design (grid braided + TPE coating) to resist light, heat, moisture, chemicals, and physical damage — ensuring safe and stable performance.

  • Aluminum Shell: Designed with precision-cut heat dissipation grooves. These channels guide hot air away quickly, improving cooling efficiency during operation.

  • Braided Wire & Tight Packaging: High-temp resistant and neat in appearance, offering overload protection and stable performance even in harsh environments.

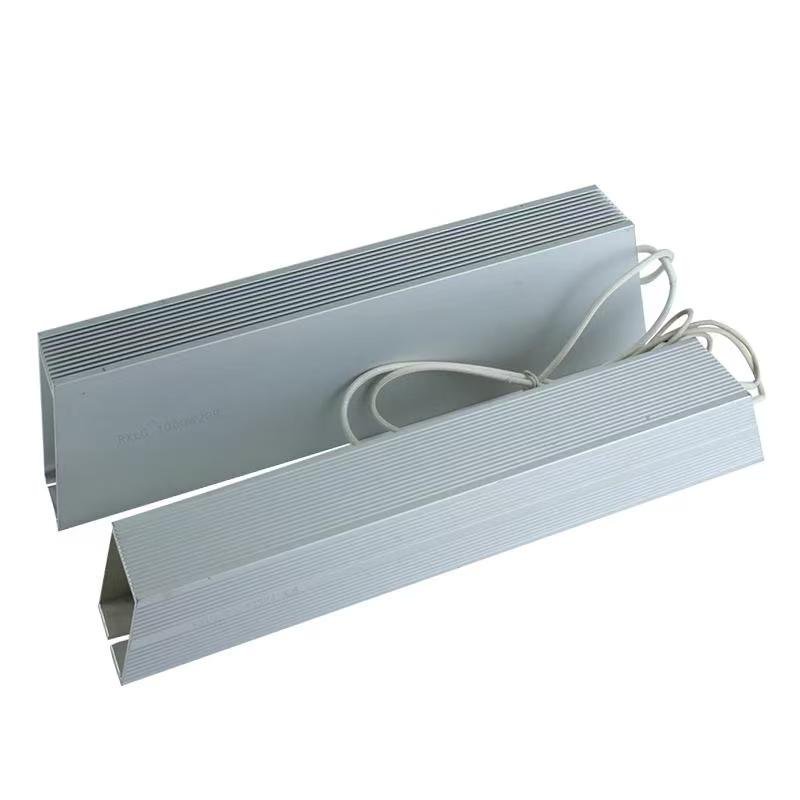

RXLG Aluminum Housed Braking Resistor Specifications

           Model Rated Power (kW) L (mm) W (mm) H (mm)  L × W-

D1 ×  W1

Pin Pitch (mm)

 Mounting Opening (mm) Lead Wire / Cable Length (mm)
RXLG 1.2 250 150 61 236×70 8 500
RXLG 1.5 280 150 61 266×70 8 500
RXLG 2 310 150 61 296×70 8 500
RXLG 2.5 350 150 33 336×70 8 500
RXLG 3 400 150 61 386×70 8 500
RXLG 4 380 150 61 366×70 8 500
RXLG 4.5 410 150 61 396×70 8 500
RXLG 5 460 150 61 446×70 8 500
RXLG 5.5 500 150 61 486×70 8 500
RXLG 6 550 150 61 536×70 8 500

What does a brake resistor do?

Brake resistors are used in motor drive systems where the inverter needs to stop the motor quickly.

Key Functions:

  1. 🛡️ Protects the inverter from potential damage caused by motor regenerative energy.

  2. ⚡ Converts regenerative energy into heat, preventing voltage spikes in the power grid.

  3. 🔄 Maintains power network stability, ensuring smooth and safe operation of the system.
