Durable 100W Aluminum Braking Resistors for Motor Control & Automation
Description

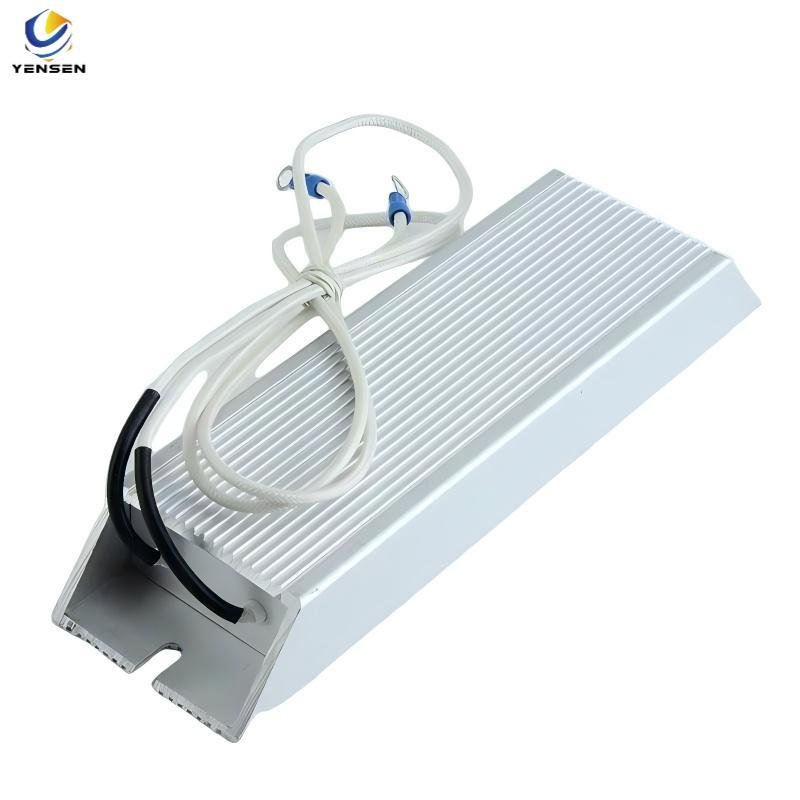

Durable 100W Aluminum Braking Resistors for Motor Control & Automation

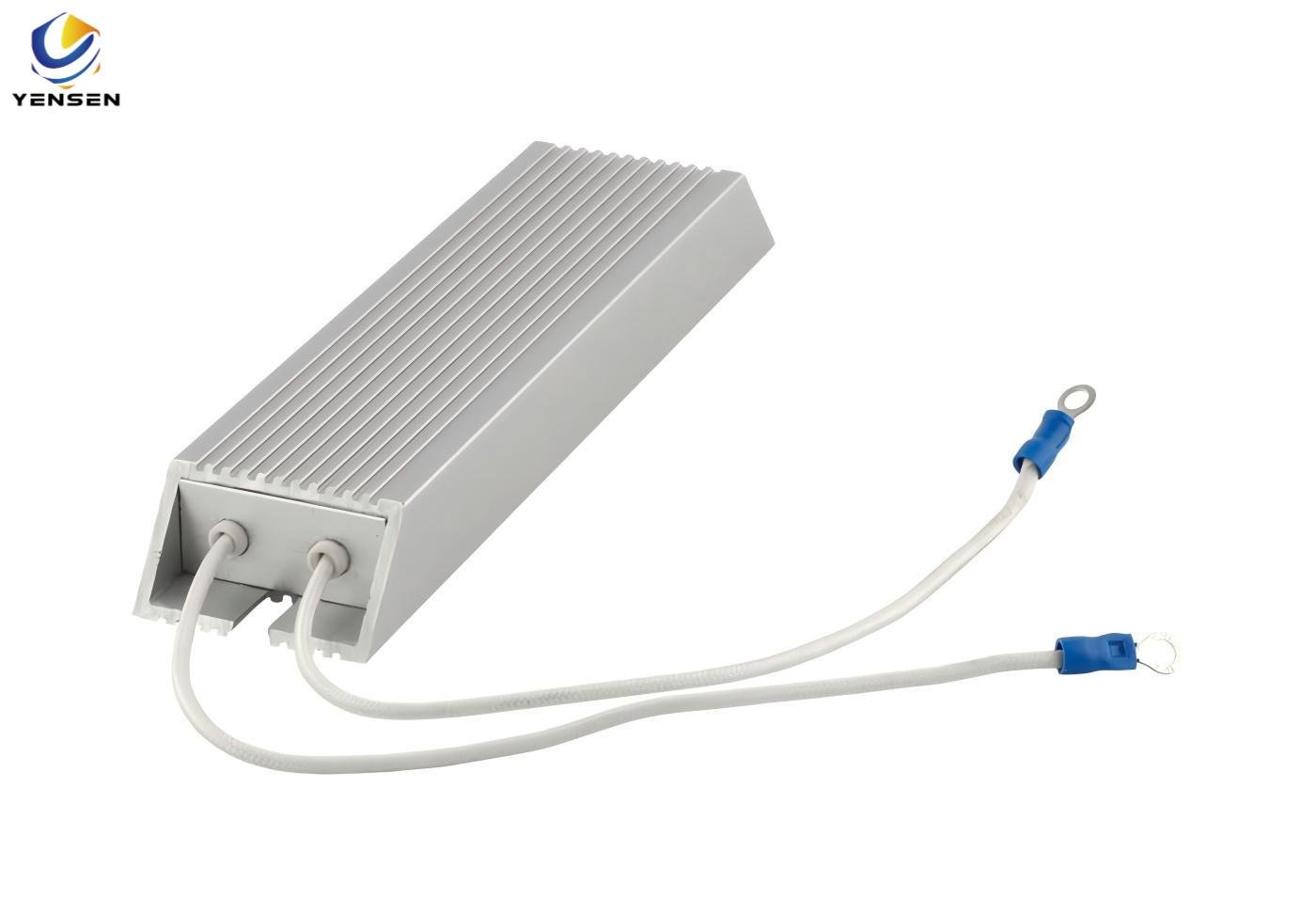

Looking for a reliable braking resistor for motor control and automation? Our 100W silver aluminum braking resistors are designed for efficient energy dissipation in VFDs, servo drives, and industrial systems. Thanks to their excellent heat resistance and compact size, they ensure stable braking under demanding conditions.
Moreover, the resistance values are customizable, making them ideal for OEMs and automation integrators. In addition, their durable design ensures long-term reliability in harsh environments.
Customizable Resistance Values & Lead Options
-
Resistance range: 1Ω to 1KΩ
-
Optional terminals: cable, screw, lug
-
Custom wire length, mounting brackets available
Product Specifications
| Parameter | Value |
|---|---|
| Resistance Range | 1Ω – 1KΩ |
| Power Rating | 100W – 1000W |
| Tolerance | ±5% (or custom) |
| Operating Temp | -55°C to +300°C |
| Mounting | Screw/Bracket/Panel Mount |
| Housing Material | Anodized Aluminum |
| Protection Class | IP20 / IP50 optional |
| Compliance | RoHS, CE |
Dimension
| Rated power | Overall | Dimension(mm | Adaptive variable | Matching | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| L | L1 | W | H | E | lead wire | Line length | Power(KW) | Electricity old value(R | ||
| 50-60 | FigureA | 115 | 98 | 40 | 20 | 350 | 0.4-0.75 | 750 | ||
| 80 | 140 | 123 | 40 | 20 | 1 | 350 | ||||
| 100 | 165 | 148 | 40 | 20 | 1 | 350 | 1.5 | 390 | ||
| 120 | 190 | 173 | 40 | 20 | 1 | 350 | ||||
| 150 | 215 | 173 | 40 | 20 | 1 | 350 | ||||
| 200 | 165 | 147 | 60 | 30 | 1.5 | 350 | ||||
| 300 | 215 | 197 | 60 | 30 | 1.5 | 350 | 2.2-3.7 | 150 | ||
| 400 | 285 | 247 | 60 | 30 | 1.5 | 350 | ||||
| 500 | 335 | 317 | 60 | 30 | 1.5 | 350 | 5.5 | 100 | ||
| 800 | 400 | 382 | 60 | 30 | 2 | 350 | 7.5 | 75 | ||
| 800 | FigureB | 400 | 382 | 61 | 59 | 40.5 | 2.5 | 350 | ||
| 1000 | 400 | 384 | 50 | 107 | 30 | 2.5 | 350 | 11 | 40-50 | |
| 1200 | 450 | 434 | 50 | 107 | 30 | 2.5 | 350 | |||
| 1500 | 485 | 470 | 50 | 107 | 30 | 4 | 350 | 15 | 40 | |
| 2000 | 550 | 532 | 50 | 107 | 30 | 4 | 350 | 15-18.5 | 20-40 | |
| 2500 | 550 | 532 | 50 | 107 | 30 | 4 | 350 | |||
| 3000 | 550 | 532 | 50 | 107 | 30 | 4 | 350 | |||
| 4000 | 700 | 686 | 50 | 107 | 30 | 4 | 350 | 18.5-22 | 20-32 | |

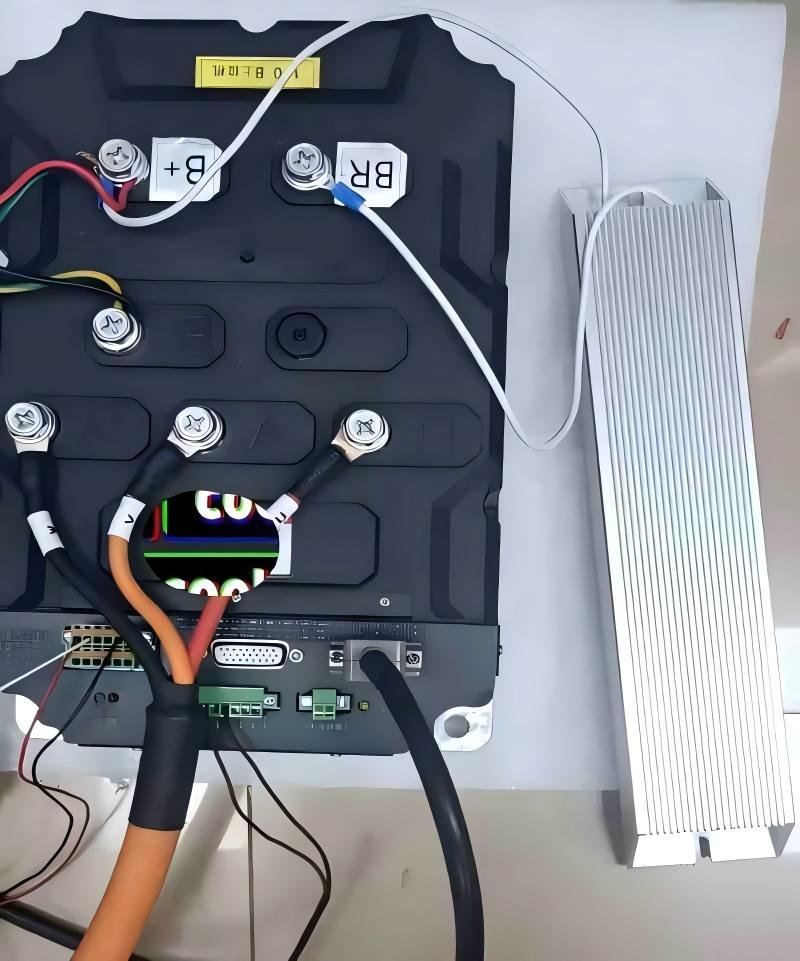

Applications in Motor Control and Industrial Automation
-
Helps dissipate excess energy during motor deceleration
-
Prevents overvoltage and protects inverter lifespan
-
Supports regenerative braking cycles
-
Ensures precise deceleration in high-speed servo systems
-
Compatible with CNC machines, packaging lines
- The resistor dissipates energy effectively. As a result, it protects the inverter from overvoltage. Moreover, it performs well even under high temperature conditions.
Explore More Braking Resistor Options
-
Looking for higher power or different mounting types?
-
Check out our full range below 200W Aluminum Resistor Heat-Resistant Braking Solution
-
-
