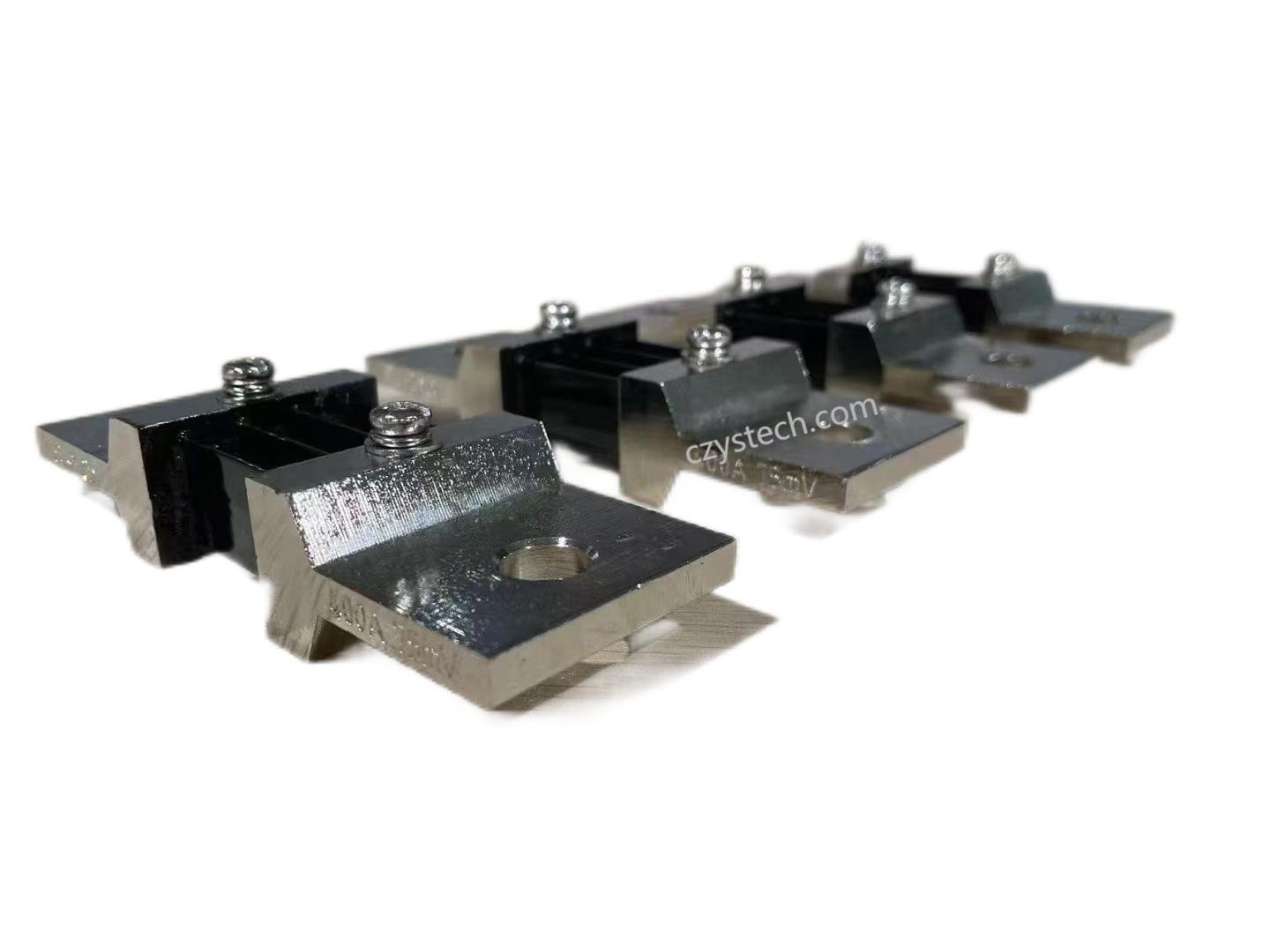

400A 75mV Power Metal Strip Fixed Value Shunt

Rated Current: 200A
Output Voltage Drop: 75mV
Accuracy Class: ±0.5% (or customizable)
Material: Manganin or copper-manganese alloy
Operating Temperature: -40°C to +60°C (or as specified)
Mounting Type: Bolt-on / Screw terminal
Optional: Customized size, terminal type, or calibration values

Description

400A 75mV Shunt Resistor | Fixed Value Metal Strip for DC Current Sensing

High-precision 400A 75mV metal strip shunt resistor designed for accurate DC current measurement. Ideal for power supply monitoring, battery systems, and industrial energy meters.

This 400A 75mV shunt resistor features a metal strip structure for high current sensing in DC power and battery applications. Its low resistance and fixed voltage drop ensure precision in energy monitoring systems.

Specification

Series	Product range	Rated Power	Rated voltage drop	tolerance	Product color
FL2	FL2 Series	20A	75mV	0.1% 0.2% 0.5% 1% 2% 5%	Yellow (no electroplating) Silver(electroplating)
		50A
		100A
		200A
		300A
		400A
		500A
		600A
		1000A
		2000A

Rated Current	20A~2000A
Pressure drop	75mV
AccuracyClass	0.1%、0.2%、0.5%、1%、2%、5%
20 ℃~60 ℃ resistance temperature coefficient T.C.R ( ppm / ℃ )	≤50
Manganese copper material	GB 6J12 precision manganese copper 50ppm
Copper material	GB T2 Y2
Operating Temperature Range	-55℃~+170℃

Applications
- Current Measurement: Used in ammeters and battery monitoring systems.
- Automotive: Common in electric vehicles and automotive electronics for precise current sensing.
- Industrial Equipment: Suitable for heavy machinery and power distribution systems.
